Reasonable Straightening Device And Non-stop Shearing Device
Raw Material Of Yield Strength:
c purlin roll forming machine
z purlin roll forming machine

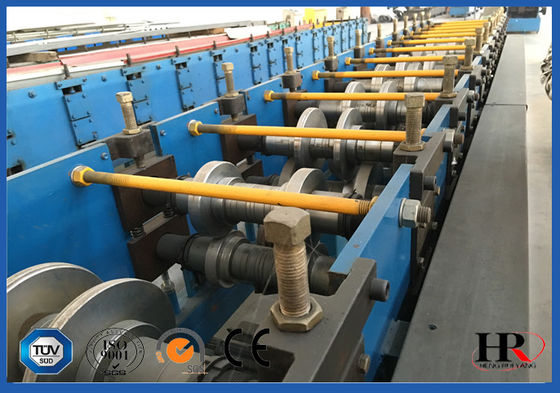

C Purlin Roll Forming Machine with Auto Cutting
C purlin roll forming machine consisting of f uncoiler (decoiler), feeding and straightening device, roll forming unit and rear cutting device is able to produce C channel purlins at a high speed. wuxi shenghong has rich experience in manufacturing this kind of roll forming machine. The machine is well-known for its long life and good working performance. Also, it is cost-effective.
1. As a part of C purlin roll forming machine, pressing arm unwinding machine can prevent the loss of the coil.
2. Equipped with a reasonable straightening device, the machine can ensure the finished channels without twisting or sideways bending.
3. The shovel head device of this channel forming machinery will help to send coil sheets into the straightening device.
4. The machine is controlled automatically so that there will not be any safety problem.
5. We have designed a non-stop shearing device for improving the working performance of the machine.
6. We can design punching as per customer's requirement although it is not shown on this layout drawing.
Technical Specifications for C/U Channel Roll Forming Machine
hot rolled steel
Special material shall be tested before finalization
Max. 6 mm
Big range of thickness may cause forming dimension tolerance
