High Speed Shutter Door Cold Roll Forming Machine with Computer Software PLC Control
1. Number of forming groups: 12groups
2. The machine material: welding comprise of 12 square tube
3. The wallboard: processing compose of 20mm steel plate
4. The mold: The mold is made of Gcr12mov steel, processed after rough turning, finish turning, finish grinding,
hard chrome plating to ensure that the mold no deformation, glabrous, wearable and accurate.
5. The shaft: The shaft is made of 45#steel, diameter of 38mm, finish turning, finish grinding after heat
treatment, quenching and high temperature tempering.
6. The bearing: Harbin type 6207
7. The roll material: 0.7-1.0mm color steel sheet, galvanized steel sheet, aluminium sheet, expansion
material 125mm, ejection of compact effective area is 88-90mm.
8. Motor: 4kw * 1 set (380v)
9. Transmission: 1.0 inch chain
10. Discharge rack: 1 set
11. Machine feature: PLC NC frequency electrical boxes, touch screen`s display, the encoder counting,
the length and quantity of the material is controllable, accuracy with in 1.0mm, automatic hydraulic cut.
12. Machine Length: 4.0 m * 0.5 m * 0.8 m
13. Machine Weight: 1.8 tons
14. Production time: 20 days
15. One year warranty
Automatic tracking the knife:
1) by PLC automatic control system
2) motor power: 2.5 kw
3) the use of imported high quality alloy blade, high quality and precision is lower

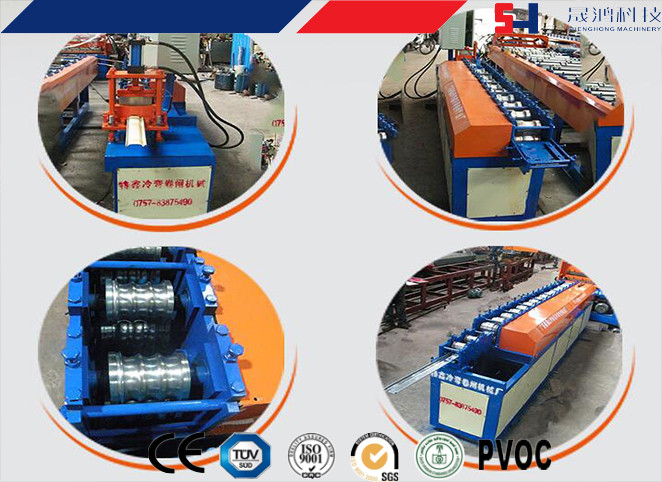

Pic for your reference:
Packaging & Shipping
The CZ interchangeable purlin roll forming machine roll forming machine is packed by the plstic film and then load into the container to protect the CZ interchangeable purlin roll forming machine from being destroyed during the shipping.
