Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty

China Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty supplier
Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty supplier Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty supplier Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty supplier Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty supplier Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty supplier Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty supplier

Large Image :  Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty

Product Details:

Place of Origin: China
Brand Name: Shenghong
Certification: CE ISO SGS
Model Number: SWL151224-165

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: container
Delivery Time: 45Days
Payment Terms: T/T
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Type: Rolling Shutter Door Slat Roll Forming Machine Control System: PLC Control System
Line Speed: Adjusted By Frequency Inverter Run-out Table Mode:: Roller Style
Total Gross Weight:: About 1500kgs Sheet Thickness:: 0.8 To 1.2 Mm;

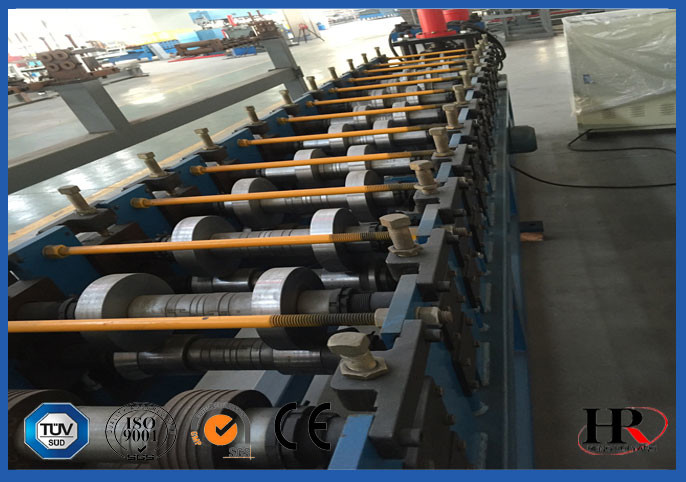

Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty


Roll Shutter Door slat Roll Forming Machine Descriptions


The roll forming machine can manufacture the Galvanised roller shutter door slat. Produced products are in fashionable design and are widely used. Rolling Shutter Slat Machine With the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter, offshore rolling doors, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles. Roller shutter garage doors are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.



Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty


Rolling Shutter Slat Machine components


Rolling shutters are custom built for each application with many options for your exact needs.
Rolling Shutter Slats Roll Forming Machine for producing galvanised steel rolling shutter door profiles is consisted of de-coiler, main roll-forming machine, straightening part, cut-to-length tracing cutter, run-out table, etc. sometimes, PU foam-filled device and punching holes system are necessary.


Roll forming Machine parameters for rolling shutter slat



Line structure

Portal-type frame style,  45# steel

Forming Roller Stations:

12 Stations

Forming Roller shaft:

Φ36mm

Forming rollers

GCr15, Quenching, hardness HRC56-62º

Forming Speed:

0-12 m/min

Main motor:

4kw

Material of Sheet:

Σs≤260Mpa

Feeding material thickness:

0.8 to 1.2 mm;

Cutting mode:

Automatic control cut-to-length

Power supplier

AC380, 50HZ, 3 PHASE



Rolling shutter Slat Profiles


Many roll shutter doors of different specifications can be produced by our machine. And it can also produce doors according to customers’ special needs. The following drawings are some of the doors just for your reference.
Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty
Roll-up blinds production (non-insulated single layer)
Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty



Rolling shutters door now have been extremely popular not only in Europe, but in the whole world. In many European countries, such as Germany, Italy, France and Spain, roll shutters are a standard feature on homes and businesses. The roll shutter business has grown to become a multi-billion dollar industry. Rolling Steel Doors, Fire Doors, rolling shutter, rolling grille, coiling doors, direct manufacturer, Using quality materials, design and workmanship, Alpine complies with the highest security in rolling fire doors, offshore rolling doors, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. Alpines, rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles, are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers. Also designed for warehouses, Dock Doors, distribution outlets, food concession stands, hospitals, store fronts and oil-rig platforms. Alpine is a Direct Manufacturer of, Roll up doors, Rolling Fire shutters, Hurricane Roll Up doors, Smoke rated doors, Coiling steel doors, Rollup doors, Rolldown doors, Overhead rolling doors, Rolling steel Insulated doors, Offshore Rolling Doors and Offshore Fire doors, Rolling Sound Doors, Smoke Rated Doors, Fire and Rolling Hurricane doors.


Related profiles roll forming machines for rolling shutter door system


Roll forming machine for production of galvanised steel rolling shutter door profiles, including the shutter slat, side guides (track), boxes profiles, rolling tubes, etc.


Rolling Shutter door aluminum covering boxes roll forming machine


Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty

Rolling Shutter Covering Box Profile
Roll Forming machine for production track of Rolling Shutter aluminum box profiles
Roll-formed aluminum boxes, it is consisted by two profiles, joined by lock seam.
Rolling Shutter Box profile Roll Forming Machine is consisted of de-coiler, main roll-forming machine, straightening part, device, cut-to-length tracing cutter, run-out table, etc. Various width can be obtained by our roll forming machines.



Factory Profile

Rolling Shutter Door Sheet Metal Roll Forming Machines Heavy Duty



Pls contact with us for the further information about the rolling shutter covering box profiles.
