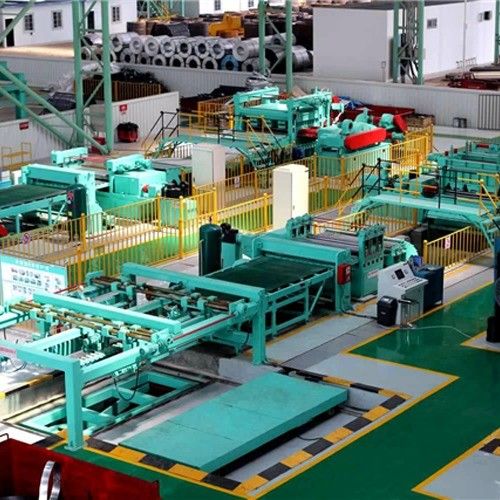

High Speed Coil Steel Slitting Machine Recoiled 20T Cr12Mov Blades

Product Details

Place of Origin: China

Brand Name: HRF

Payment & Shipping Terms

Price: $50,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                High Speed Steel Slitting Machine, Recoiled Steel Slitting Machine, Recoiled coil slitting line


Cutting Width (mm):	2 - 6 Mm	Material Thickness(mm):	500 - 1300 Mm
Video Outgoing-inspection:	Not Available	Machinery Test Report:	Not Available
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Cutting Speed(m/min):	1 - 80 Mm
No. Of Slitting Lines:	1 - 30	Coil Weight (T):	20 T
Condition:	New	Voltage:	380V
Rated Power:	200KW	Dimension(LWH):	28X8X2m
Weight:	10000	Year:	2024
Key Selling Points:	High Procuetivity	Warranty:	1 Year
Applicable Industries:	Construction Works , Building Material Shops, Manufacturing Plant	Showroom Location:	Egypt, Canada, Turkey, Italy, Russia, Spain, South Korea
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Coil Thickness:	2-6mm
Control System:	Eurotherm 590 Controller	Coil Material:	Galvanized ,hot Rolled ,cold Rolled
Motor Power:	75Kw	Decoiler Type:	Double Double 3 Steps Decoiler
Blades Material:	SKD-11(Cr12Mov)	Usage:	Steel Coil Slitting Machine
Strip Width:	500-1300mm	Name:	2-6mm Coil Slitting Machine Slitting Line Metal Slitting Machine

Cutting Width (mm):	2 - 6 Mm
Material Thickness(mm):	500 - 1300 Mm
Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Cutting Speed(m/min):	1 - 80 Mm
No. Of Slitting Lines:	1 - 30
Coil Weight (T):	20 T
Condition:	New
Voltage:	380V
Rated Power:	200KW
Dimension(LWH):	28X8X2m
Weight:	10000
Year:	2024
Key Selling Points:	High Procuetivity
Warranty:	1 Year
Applicable Industries:	Construction Works , Building Material Shops, Manufacturing Plant
Showroom Location:	Egypt, Canada, Turkey, Italy, Russia, Spain, South Korea
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Coil Thickness:	2-6mm
Control System:	Eurotherm 590 Controller
Coil Material:	Galvanized ,hot Rolled ,cold Rolled
Motor Power:	75Kw
Decoiler Type:	Double Double 3 Steps Decoiler
Blades Material:	SKD-11(Cr12Mov)
Usage:	Steel Coil Slitting Machine
Strip Width:	500-1300mm
Name:	2-6mm Coil Slitting Machine Slitting Line Metal Slitting Machine

High Speed Coil Steel Slitting Machine Recoiled 20T Cr12Mov Blades

Company Profile

Products Description

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.

Product Paramenters

Steel coil parameters	Material	HR,CRS and GI
		Tensile strength	δb≤450Mpa,δS≤260Mpa
		Steel thickness	0.3-3mm
		Steel width	500-1600
		Steel coil I.D	φ480-520 mm
		Steel coil O.D	φ1600mm(Max)
		Steel coil weight	15T
Slitter parameters	knife pivot diameter	Ф200 mm
		Knife pivot material	40Cr
		Blades specification	Φ200mmXφ340mmX15mm
		Blade material	6CrW2Si
Slit parameter	Max slit quantity	5 pcs (3mm) 25 pcs(0.3mm)
		Width precision	≤±0.05mm/2M
		Mini slit strips width	20mm
Other parameters	Power	380V/50Hz/3Ph
		Line speed	0-100m/min
		Capacity	210 Kw
		Whole line Dimension	25m(L)X8m(W)
		Operator needed	1 mechanical engineer ,2 common workers
		Line direction	From right to left(Face to machine)
		Machine color	White grey
