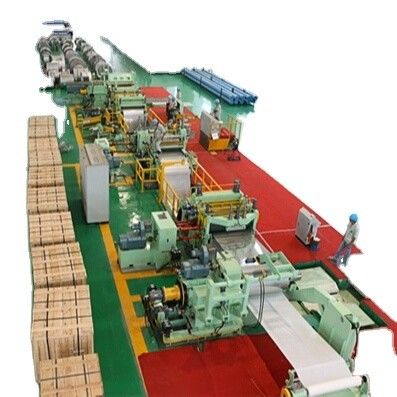

Automatic Steel Slitting Machine For Metal Coil PLC Control

Product Details

Place of Origin: Jiangsu, China

Brand Name: hrf

Payment & Shipping Terms

Price: $50,000.00/pieces 1-1 pieces

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Automatic Steel Slitting Machine, PLC Control Steel Slitting Machine, PLC Control coil slitting machine


Cutting Width (mm):	500 - 1600 Mm	Material Thickness(mm):	0.3 - 3 Mm
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2021	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Cutting Speed(m/min):	1 - 80 Mm
No. Of Slitting Lines:	1 - 50	Coil Weight (T):	20 T
Condition:	New	Voltage:	450v
Rated Power:	300kw	Dimension(LWH):	25mx8mx2m
Weight:	5000	Year:	2021
Key Selling Points:	High Productivity	Warranty:	1 Year
Applicable Industries:	Construction Works , Building Material Shops, Machinery Repair Shops	Showroom Location:	Egypt, Turkey, Italy, Spain, South Korea, UAE
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Product Name:	High-end Metal Coil Slitting Machine Simple Slitter
Coil Thickness:	1-6mm	Control System:	Automatic
Material Of Coils:	Galvanized Steel,hot Rolled ,cold Rolled Steel	Motor Power:	75kw
Decoiler Type:	Hydraulic	Color:	Requirement
Shipment:	Shanghai Port	Name:	Coil Steel Slitting Machine Slitting Line For Metal Coil

Cutting Width (mm):	500 - 1600 Mm
Material Thickness(mm):	0.3 - 3 Mm
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2021
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Cutting Speed(m/min):	1 - 80 Mm
No. Of Slitting Lines:	1 - 50
Coil Weight (T):	20 T
Condition:	New
Voltage:	450v
Rated Power:	300kw
Dimension(LWH):	25mx8mx2m
Weight:	5000
Year:	2021
Key Selling Points:	High Productivity
Warranty:	1 Year
Applicable Industries:	Construction Works , Building Material Shops, Machinery Repair Shops
Showroom Location:	Egypt, Turkey, Italy, Spain, South Korea, UAE
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	High-end Metal Coil Slitting Machine Simple Slitter
Coil Thickness:	1-6mm
Control System:	Automatic
Material Of Coils:	Galvanized Steel,hot Rolled ,cold Rolled Steel
Motor Power:	75kw
Decoiler Type:	Hydraulic
Color:	Requirement
Shipment:	Shanghai Port
Name:	Coil Steel Slitting Machine Slitting Line For Metal Coil

Automatic Steel Slitting Machine For Metal Coil PLC Control

Company Profile

Products Description

The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.

Product Paramenters

Steel coil parameters	Material	HR,CRS and GI
		Tensile strength	δb≤450Mpa,δS≤260Mpa
		Steel thickness	0.3-3mm
		Steel width	500-1600
		Steel coil I.D	φ480-520 mm
		Steel coil O.D	φ1600mm(Max)
		Steel coil weight	15T
Slitter parameters	knife pivot diameter	Ф200 mm
		Knife pivot material	40Cr
		Blades specification	Φ200mmXφ340mmX15mm
		Blade material	6CrW2Si
Slit parameter	Max slit quantity	5 pcs (3mm) 25 pcs(0.3mm)
		Width precision	≤±0.05mm/2M
		Mini slit strips width	20mm
Other parameters	Power	380V/50Hz/3Ph
		Line speed	0-100m/min
		Capacity	210 Kw
		Whole line Dimension	25m(L)X8m(W)
		Operator needed	1 mechanical engineer ,2 common workers
		Line direction	From right to left(Face to machine)
		Machine color	White grey
