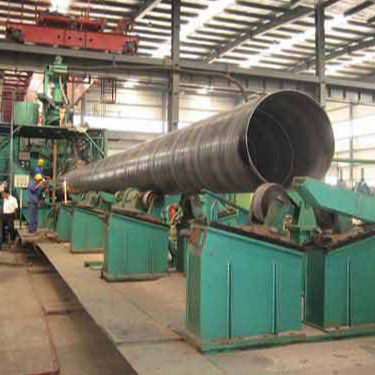

Automatic Tube Spiral Pipe Making Machine 380V 220V

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $1,460,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                220V Spiral Pipe Making Machine, 380V Spiral Pipe Making Machine, 380V spiral tube making machine


Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works	Showroom Location:	Turkey, Germany
Video Outgoing-inspection:	Not Available	Machinery Test Report:	Not Available
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear	Condition:	New
Type:	Pipe Making Machine	Pipe Material:	Iron
Application:	Energy Supply Pipe	Production Capacity:	0.6m/min~2.5m/min
Voltage:	380/220V	Power:	500KW
Dimension(LWH):	12900x2400x400mm	Weight:	200000 Kg
Warranty:	1 Year	Key Selling Points:	High Productivity
KEYWORDS:	Engineers Available To Service Machinery Overseas	Width Of Steel Coil:	700-1500mm
Length:	8-12.5m	Outer Dia:	1000~2000mm
I..D. Of Steel Coil:	610~760mm	Maxi. Load Weight:	≤30000kgs
Thickness:	9.5~17.1mm	Produce Speed:	0.6m/min~2.5m/min
Annual Output:	30,000-70,000tons Per Year	Name:	Automatic Spiral Pipe Machine/spiral Tube Making Machine

Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works
Showroom Location:	Turkey, Germany
Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear
Condition:	New
Type:	Pipe Making Machine
Pipe Material:	Iron
Application:	Energy Supply Pipe
Production Capacity:	0.6m/min~2.5m/min
Voltage:	380/220V
Power:	500KW
Dimension(LWH):	12900x2400x400mm
Weight:	200000 Kg
Warranty:	1 Year
Key Selling Points:	High Productivity
KEYWORDS:	Engineers Available To Service Machinery Overseas
Width Of Steel Coil:	700-1500mm
Length:	8-12.5m
Outer Dia:	1000~2000mm
I..D. Of Steel Coil:	610~760mm
Maxi. Load Weight:	≤30000kgs
Thickness:	9.5~17.1mm
Produce Speed:	0.6m/min~2.5m/min
Annual Output:	30,000-70,000tons Per Year
Name:	Automatic Spiral Pipe Machine/spiral Tube Making Machine

Automatic Tube Spiral Pipe Making Machine 380V 220V

product description

The back swing type spiral welded pipe unit is to open and level the steel coil through the unit equipment, and then send it to the forming machine at a certain angle, using the principle of three roll coiler, supplemented by a certain angle, to form a continuous round pipe, and the continuous spiral weld is welded by submerged arc welding machine. The uncoiled, uncoiled, leveled and sheared butt welding of steel coil are all carried out on the reciprocating flying welding car. When butt welding of steel coil is carried out, the flying welding car keeps the same speed with the main machine, and the main machine does not stop for continuous production. When butt welding is completed, the flying welding car quickly retreats to the initial position and waits for the next steel coil. This kind of continuous production mode has the advantages of high production efficiency, good product quality and few repair welded pipes. According to the different uses of products, the rear swing spiral welded pipe unit is divided into: API standard model, national standard model. API standard model is mainly used for the production of oil and natural gas (long-distance) transmission pipes. It has very high requirements for the material and quality of steel pipes, as well as for the unit equipment and inspection equipment. The national standard model is mainly used for short-distance natural gas transmission and water delivery pipe, urban pipe network construction, structural pipe, column pipe, etc. The steel material and quality requirements are also high, second only to API standards.

The whole lineflowchart

coil uncoiler→pinching&leveling→electric vertical roll→hydaulic cut head&tail →buttwelding→electric vertical roll→edge mill device→board surface cleaner→ manul vertical rol→ main feeding &delivery→pre-bending&guide board→forming→inside welding→outside welding→plasma cutting→pulling out→ finished product inspection→collecting

Main Parameter

1 Raw material data
Coil outer dia	Φ1000～2000mm
Inner dia.	Φ610～760mm
Width	700～1500mm we can design after all confirmation
Thickness	9.5～17.1mm
Material	Q235 Q345 X42-X65 normal carbon steel and low alloy steel Q235 Q345 X42-X65
Crescent	≤10/10000 mm
Turriform	＜30mm
Max. weight	30t
2 Final steel pipes data
Pipe outer dia	Φ24inch(610mm)～48inch(1219mm)mm
Wall thickness	9.5～17.1mm
Length	12 m
Spiral swing angle	45～78º
3 Sprial mill data
Mode or type data A. Unit mode: frontal swinging, center positioning B.Forming way: three-roll bending, four-row outside control roll sizing
Welding	double-side sub-merged arc automatically welding
Inside welder	single-wire DC-1500 Welding
Outside welder	Double-wire DC～1500+AC～1200 Welding
Welding speed	0.8～2.2m/mim
Feeding speed	0.6～2.5m/mim
Annual output	20,000-50,000tons per year
Pressed air source	0.4～0.6Mpa
Plant area(can be advanced by ours)	See the advance layout by ours,all the final sizes and layout should be confirmed after measure and base on your prent plant sizes and flows for free.
Electric power	AC380V 50Hz
Control power	AC220V 50Hz
Total electric of the mill	～500KW

Factory Show

Product Advantage

1.Forming machine automatic adjustment system : This mill adopts the database + computer automatic control technology to adjust the machine when it changes the specification. This mill needs to adjust the angle of the front axle, the Angle of the six-component roller of the forming machine, the position of the six sets of rollers of the forming machine and the angle of the welding pad roller when changing the specifications. In the past, the adjustment work of the mill was completed by experienced adjustment workers, basically relying on the experience of adjustment workers, which is easy to cause a single adjustment is not in place, repeated adjustment, thus more waste pipes, and the adjustment workload is large, very cumbersome. This set of front axle and molding machine need to adjust the Angle and position precisely controlled by the encoder, and to advance according to the theory of data, the establishment of a complete database, in the production of some specifications of the steel tube, just on the computer tablet parameters such as width, diameter, wall thickness, all adjust parts will come to the right place, start production directly. This reduces the need for adjustment, the reliance on experienced adjusters, and the waste pipe. 2.B.Uncoiler automatic centering function:There is the centering button on the operation stand of uncoiler. When the button is switched on, the double cone heads will automatically centralize the mill centerline. Then, the coil center is consistent to the mill center. It is no need to adjust with the vertical rollers. The production efficiency is improved and the instability is decreased.
