Product Details
Place of Origin: Jiangsu, China
Brand Name: HRF
Payment & Shipping Terms
Price: $100,000.00/sets 1-1 sets
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Machinery Repair Shops |
Showroom Location: |
Canada, Italy |
Video Outgoing-inspection: |
Not Available |
Machinery Test Report: |
Not Available |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 Year |
Core Components: |
PLC, Engine, Gearbox, Motor, Pressure Vessel |
Condition: |
New |
Type: |
Pipe Production Line |
Pipe Material: |
Iron |
Application: |
Iron |
Production Capacity: |
0m/min~100m/min |
Voltage: |
380v |
Power: |
600kw |
Dimension(L*W*H): |
60*6*1.8m |
Weight: |
45 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High-accuracy |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Function: |
Welded Tube Mill |
Round Pipe Diameter: |
114mm~200mm |
Steel Coil O.D:: |
800mm~1600mm |
Maxi. Load Weight: |
≤4000kgs |
Length: |
4m~8m |
Produce Speed: |
0m/min~100m/min |
Pipe Material: |
Carbon Steel Alloy Steel Galvanized Steel |
Steel Coil I.D:: |
450mm~550mm |
Name: |

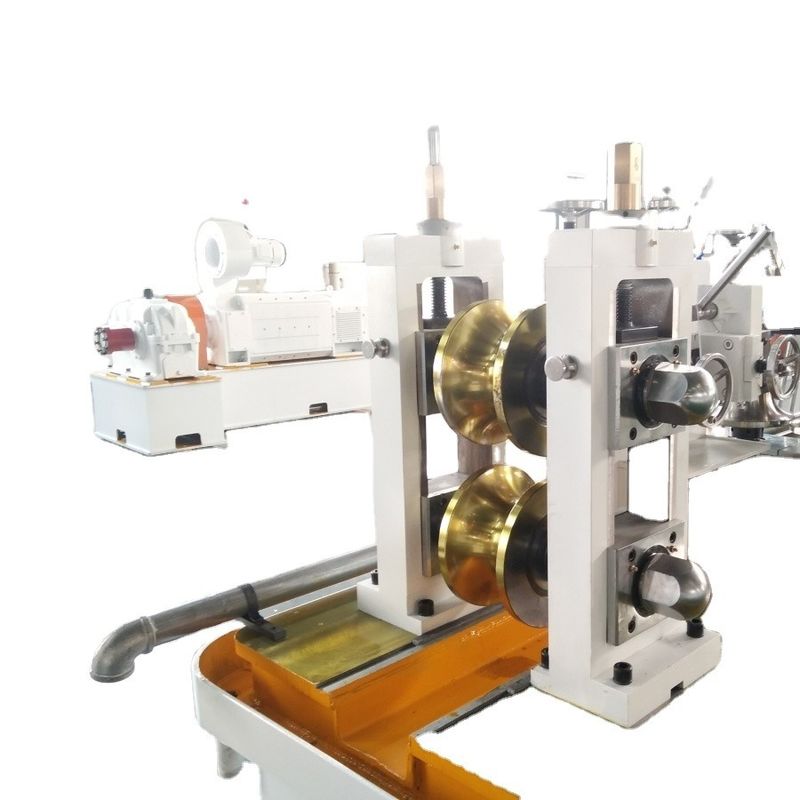

High Speed Erw Pipe Machine Pipe Mill Erw Pipe Making Machine |
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Machinery Repair Shops |
Showroom Location: |
Canada, Italy |
Video Outgoing-inspection: |
Not Available |
Machinery Test Report: |
Not Available |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 Year |
Core Components: |
PLC, Engine, Gearbox, Motor, Pressure Vessel |
Condition: |
New |
Type: |
Pipe Production Line |
Pipe Material: |
Iron |
Application: |
Iron |
Production Capacity: |
0m/min~100m/min |
Voltage: |
380v |
Power: |
600kw |
Dimension(L*W*H): |
60*6*1.8m |
Weight: |
45 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High-accuracy |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Function: |
Welded Tube Mill |
Round Pipe Diameter: |
114mm~200mm |
Steel Coil O.D:: |
800mm~1600mm |
Maxi. Load Weight: |
≤4000kgs |
Length: |
4m~8m |
Produce Speed: |
0m/min~100m/min |
Pipe Material: |
Carbon Steel Alloy Steel Galvanized Steel |
Steel Coil I.D:: |
450mm~550mm |
Name: |
High Speed Erw Pipe Machine Pipe Mill Erw Pipe Making Machine |
|
Power supply
|
380V；50HZ
|
|
|
|
Power of machine
|
HF welding machine
|
300 KW
|
|
|
|
main motor
|
264 KW
|
|
|
|
Auxiliary machine
|
70 KW
|
|
|
|
total:
|
Approach: 634 KW
|
|
|
Area of machine
|
55M(L)×4.5M(W)
|
|
|
|
Volume of HF room
|
6M(L)×3M×2.8M
|
|
|
|
Sequence
|
Item
|
numerical value
|
|
1
|
Round pipe diameter
|
Φ38mm～Φ127mm
|
|
2
|
Round pipe thickness
|
δ1.0mm～3.0mm
|
|
3
|
Square pipe size
|
30×30-100×100mm
|
|
4
|
Square pipe thickness
|
δ1.0-3.0mm
|
|
5
|
Rectangular pipe size
|
20×40-80×120mm
|
|
6
|
Rectangular pipe thickness
|
δ1.0-3.0mm
|
|
7
|
Rolling speed
|
20M/min～80M/min
(different diameter and thickness choose different speed) |
|
8
|
Length of pipe
|
4M～10M
|
