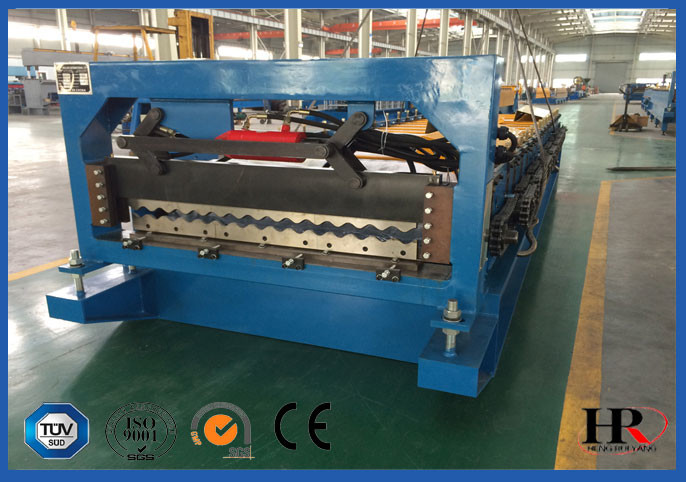

Unique Wave StyleTile Roof Roll Forming Machine for Making Color Steel Tile
Roof roll forming machine Introduction
The wave tile sheet is rolled and pressed by the Roof Tile series modular tile sheet roll forming machine, it has many features, such as good appearance, primitive simplicity and elegance, unique style, noblest grade, and etc. It is widely used in garden style factories, scenic resorts, pavilions, hotels, villas, exhibition halls, country clubs, and so on for outdoor decorations.
Roof Tile series modular tile sheet roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, pressing die, shearing device, hydraulic station, PLC control console and so on. Our company has dozens of profile models for this series roll forming machine, such as SHTM25-183-1100, SHTM28-207-828, and etc. We can design different kinds of profile and fittings for machine, as per customers' requirements.
Roof Tile SWL151211-41
Color steel sheet
(m/min)Max. Forming speed
45# steel with chrome
Roller driven type
Touch screen and button
(Mpa)Hydraulic system pressure
(KW)Hydraulic station motor power
(KW)Main motor power
Uncoiling→Sheet Guiding→Roll Forming→Pressing→Measuring Length &Shearing→Sheet to Support Table.
