Developed Hydraulic Cutting Tile Roll Forming Machine Anti Rust Roller
Steel Tile Cold Forming Machine
Why this machine?
1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.
7. All-in-house source: We are "All-in-house source" factory to ensure quality and delivery of your machines.
8. Long life: Ensure you our produce machine`s lifetime more than 15 years.
Pre-painted steel coil & galvanized coils
45# steel , coated with Chrome
Shaft for rollers
Solid shaft with 72mm,processed with cylindrical
About 12 for 6m length sheet
Speed adjusting mode
Mitsubishi frequency transformer
Decelerating motor + Chain drive
Cr12 mould steel

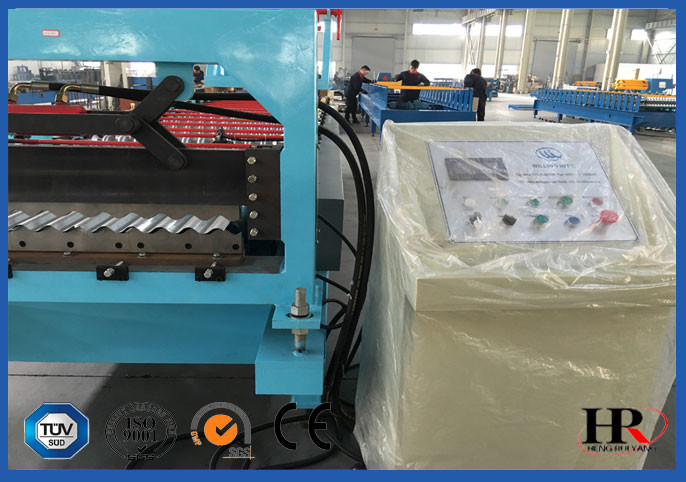

Button + Mitsubishi Touch screen
Main motor power(kw)
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
Components of machine
Decoiler (manual decoiler and hydraulic
decoiler for option)
Feeding & guiding device
Main roll forming machine

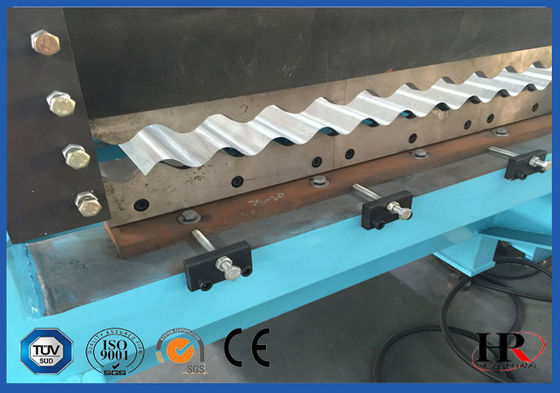

Hydraulic cutting system
Run out table (auto. Stacker for option)
With SHENGHONG products you save time and money!
SHENGHONG is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
When roll forming machine must be delivered immediately, depending on customer`s features, we can manufacture and deliver machine in only 5-8 weeks.
You can rely on our team!
The dedicated staff at Shenghong is our key to success.
We have engineers with experience more than 15 years in metal forming industry.
Employees and their development are of fundamental importance to Shengghong macchinery.
Quality by Shenghong
Shenghong is certified according to the standards ISO 9001: 2008 and EN982: 2008, EN ISO12100-1: 2003, EN ISO 14121-1: 2007.
Our Integrated Management System comprises Quality, Environment, Employment and Health Protection. When it comes to safety, there are no compromises.
Roof Roll Forming Construction Machinery.
Provide profile drawing & design technical support FOR FREE!
