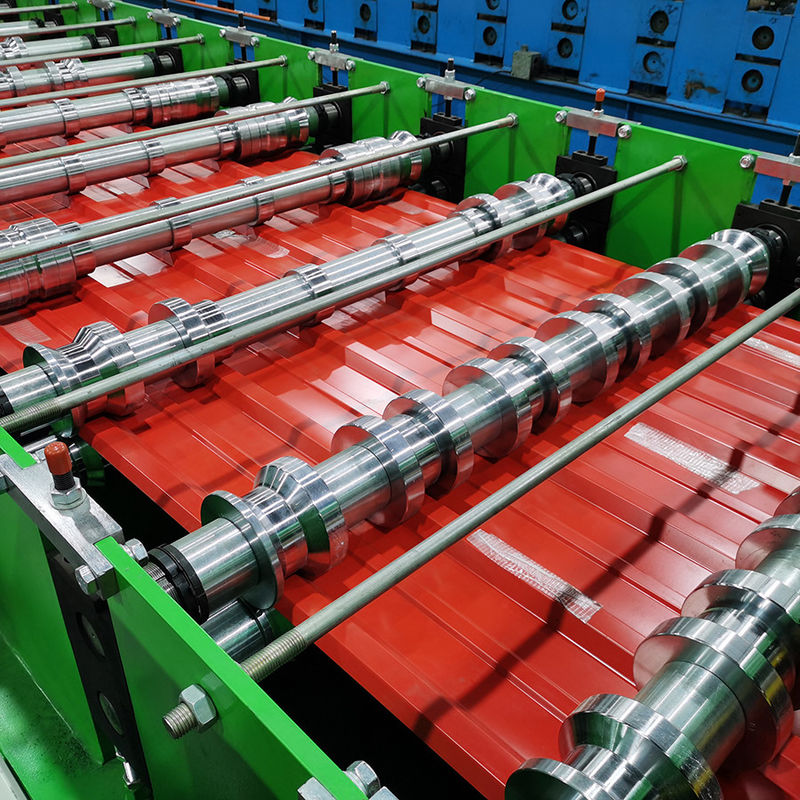

380V 50Hz Roof Sheet Making Machine Panel Roll Forming

Product Details

Place of Origin: Jiangxi, China

Brand Name: HRF

Payment & Shipping Terms

Price: $30,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                380V roof sheet making machine, Panel Forming roof sheet making machine, 380V roof panel machine


Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works	Showroom Location:	Egypt, Turkey, Italy, Indonesia, Spain, South Korea, South Africa, Japan
Condition:	New	Type:	IBR Roll Forming Machine
Tile Type:	Colored Glaze	Use:	ROOF
Production Capacity:	8-12m/min	Voltage:	380V 50Hz 3phases
Dimension(LWH):	7.351.21.5	Weight:	5 Kg
Warranty:	1 Year	Key Selling Points:	High Productivity
Rolling Thinckness:	0.3-0.8mm	Feeding Width:	1000mm
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	IBR Roof Roll Forming Machine	Color:	Blue
Control System:	PLC(imported Brand)	Cutting Blade Material:	Cr 12 High Grade Steel
Shaft Material:	5 Nm Chrome Coated	Usage:	Roof Tile Panel
Material:	Glavanized Sheet	Roller Material:	45# Forged Steel
Raw Material:	Galvanized Sheet

Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works
Showroom Location:	Egypt, Turkey, Italy, Indonesia, Spain, South Korea, South Africa, Japan
Condition:	New
Type:	IBR Roll Forming Machine
Tile Type:	Colored Glaze
Use:	ROOF
Production Capacity:	8-12m/min
Voltage:	380V 50Hz 3phases
Dimension(LWH):	7.351.21.5
Weight:	5 Kg
Warranty:	1 Year
Key Selling Points:	High Productivity
Rolling Thinckness:	0.3-0.8mm
Feeding Width:	1000mm
Machinery Test Report:	Not Available
Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	IBR Roof Roll Forming Machine
Color:	Blue
Control System:	PLC(imported Brand)
Cutting Blade Material:	Cr 12 High Grade Steel
Shaft Material:	5 Nm Chrome Coated
Usage:	Roof Tile Panel
Material:	Glavanized Sheet
Roller Material:	45# Forged Steel
Raw Material:	Galvanized Sheet

380V 50Hz Roof Sheet Making Machine Panel Roll Forming

On the basis of traditional roll forming machines, we also develop new computer fully automatic roll forming machines, roof and
wall panel forming machines, glazed tile forming machines, floor bearing plate forming machines, high-speed barrier devices,
double color steel tile molding machines, C and Z steel machines, arch appliances, sandwich composite plate machines, shearing
machines, bending machines, and heat insulation sandwich composite machines. Our products have reached the advanced level in the
same industry. As beautiful appearance, reasonable structure, and tile-based standards of our products, they are popular among new
and old customers. Our products are exported to more than 40 countries and regions.

Advantages: ♥ Customized according to customer requirements. ♥ Over 15 years of experience

♥ Favorable price and easy operation ♥ Provide technical guidance, production, installation, commissioning and maintenance services for our customers

♥ Exported to more than 40 countries worldwide, widely praised

ØMain power:	7.5KWØRoll stations: 20 stations
single row	1.0inch chain drive
ØDiameter of shaft:	￠75mm
ØCutting system:	hydraulic stop-to-cut
Øcutting Length tolerance:	3±1.5mm
ØWorking speed:	12--25m/min(not including the cutting time)
ØThickness:	0.3mm--0.8mm,G550Mpa tensile galvanized or prepainted steel sheet.
ØCoil input width size:	1220mm
ØMaterial of roller:	45# ,HRC48--52,chromed
ØMaterial of blade mould:	Cr12, quenched 58-62
ØSize of machine:	approx9.0m1.6m1.4m
ØMachine structure:	Torri stands structure
ØHydraulic power:	5.5kw
ØHydraulic pressure :	16Mpa

Get the latest quote

FAQ

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
