Profile Sheet Door Frame Making Machine PLC Control

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $25,000.00/sets 1-1 sets

Packaging Details: Standard Packing steel door frame making machine steel door frame roll forming machine steel door frame roll forming machine

Supply Ability: 15 Set/Sets per Year

Get Best Price
Highlight:

Profile door frame making machine

,

PLC Control door frame making machine

,

PLC profile sheet making machine

Applicable Industries:
Building Material Shops, Machinery Repair Shops, Construction Works
Showroom Location:
Morocco, UAE
Condition:
New
Type:
Door Frame Forming Machine
Tile Type:
Steel
Use:
Other
Production Capacity:
8-12m/min
Voltage:
380V
Dimension(L*W*H):
5m*1.3m*1.3m-15m*1.3m*1.4m
Weight:
3.5 Kg
Warranty:
1 Year
Key Selling Points:
High Productivity
Rolling Thinckness:
0.2-1.0mm
Feeding Width:
1200mm
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Keywords:
Engineers Available To Service Machinery Overseas
Max Speed:
12-16m/min
Cutting Way:
Hydraulic Cutting
Control System:
PLC
Product Name:
Shutter Door Forming Machine
Main Power:
5.5Kw
Decoiler Type:
Hydraulic
Name:
Steel Door Frame Roll Forming Machine
Port:
ShangHai Steel Door Frame Making Machine Steel Door Frame Roll Forming Machine Steel Door Frame Roll Forming Machine
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Construction Works
Showroom Location:
Morocco, UAE
Condition:
New
Type:
Door Frame Forming Machine
Tile Type:
Steel
Use:
Other
Production Capacity:
8-12m/min
Voltage:
380V
Dimension(L*W*H):
5m*1.3m*1.3m-15m*1.3m*1.4m
Weight:
3.5 Kg
Warranty:
1 Year
Key Selling Points:
High Productivity
Rolling Thinckness:
0.2-1.0mm
Feeding Width:
1200mm
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Keywords:
Engineers Available To Service Machinery Overseas
Max Speed:
12-16m/min
Cutting Way:
Hydraulic Cutting
Control System:
PLC
Product Name:
Shutter Door Forming Machine
Main Power:
5.5Kw
Decoiler Type:
Hydraulic
Name:
Steel Door Frame Roll Forming Machine
Port:
ShangHai Steel Door Frame Making Machine Steel Door Frame Roll Forming Machine Steel Door Frame Roll Forming Machine
Profile Sheet Door Frame Making Machine PLC Control
Profile Sheet Door Frame Making Machine PLC Control 0

Profile Sheet Door Frame Making Machine PLC Control 1
NO
Name
Quanty
Remark
1
5T hydrauic
Motoize decoiler


1pc
Max capacity:5T
2
Leveling machine
1 set
1)5.5kw frequency change driving-motor,speed adjustable 2)2 rolls feeding and 7 rolls
leveling

3) Levelling rolls dia 80mm
4)Levelling motor:4kw
3
servo motor feeder
1set
Yaskawa servo-feeder.3kw 2)Feeding distance can be
adjustable
4
Hydraulic Punching

frame
3sets
Motor:11kw
5
Punching mould for

lock set
1set
Punching mould material:

Cr12 Mov.
6
Punching mould for

hinge set
1 set
Punching mould

material:Cr12 Mov.
7
Punching mould for 45 degree mitre
cut
3 sets
Punching mould material:Cr12 Mov.
8
Main forming Machine unit
1set
17 forming stations with Torri stands
9

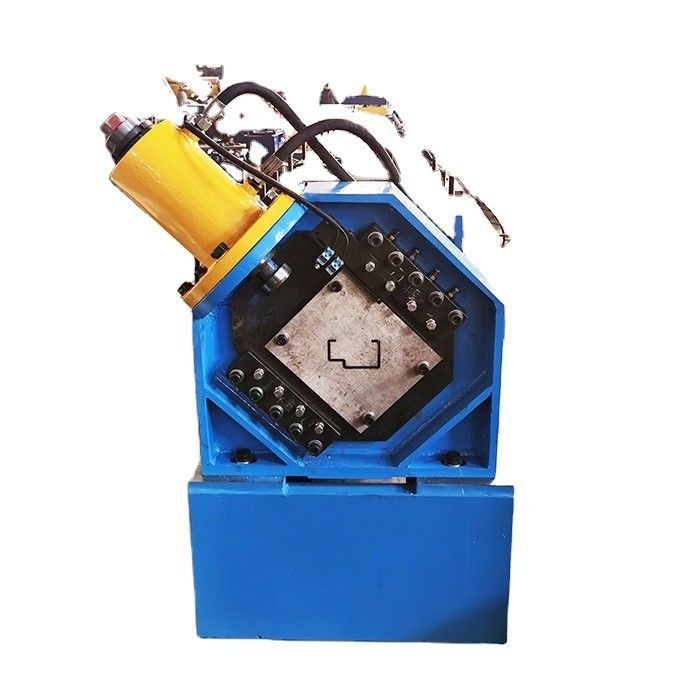

Hydraulic cutting
1set
Stop to cut
10
Cutting blade
3 sets
Cr12Mov,HCR58-62
11
Run-out table
2pcs
2m long Steel frame with

Rollers
12
Electric panel
2sets
PLC control system,Panasonic
Profile Sheet Door Frame Making Machine PLC Control 2
Profile Sheet Door Frame Making Machine PLC Control 3
Profile Sheet Door Frame Making Machine PLC Control 4
Profile Sheet Door Frame Making Machine PLC Control 5
Profile Sheet Door Frame Making Machine PLC Control 6

Coil car loading--5T hydraulic decoiler--7 rolls leveling –servo-feeder----(No 1)3 sets hinges holes punching---(No 2)lock holes punching--(-No 3)crossbar head cut ---roll forming----Turk head---hydraulic flying shear---4M auto outable
Profile Sheet Door Frame Making Machine PLC Control 7
Profile Sheet Door Frame Making Machine PLC Control 8
Profile Sheet Door Frame Making Machine PLC Control 9
Profile Sheet Door Frame Making Machine PLC Control 10
Profile Sheet Door Frame Making Machine PLC Control 11
Profile Sheet Door Frame Making Machine PLC Control 12
Profile Sheet Door Frame Making Machine PLC Control 13
Profile Sheet Door Frame Making Machine PLC Control 14
Profile Sheet Door Frame Making Machine PLC Control 15
Profile Sheet Door Frame Making Machine PLC Control 16
Profile Sheet Door Frame Making Machine PLC Control 17
Profile Sheet Door Frame Making Machine PLC Control 18
Profile Sheet Door Frame Making Machine PLC Control 19
Profile Sheet Door Frame Making Machine PLC Control 20
Profile Sheet Door Frame Making Machine PLC Control 21
Profile Sheet Door Frame Making Machine PLC Control 22
Get the latest offer now!
Profile Sheet Door Frame Making Machine PLC Control 23
Profile Sheet Door Frame Making Machine PLC Control 24
Profile Sheet Door Frame Making Machine PLC Control 25
Profile Sheet Door Frame Making Machine PLC Control 26

FAQ

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
