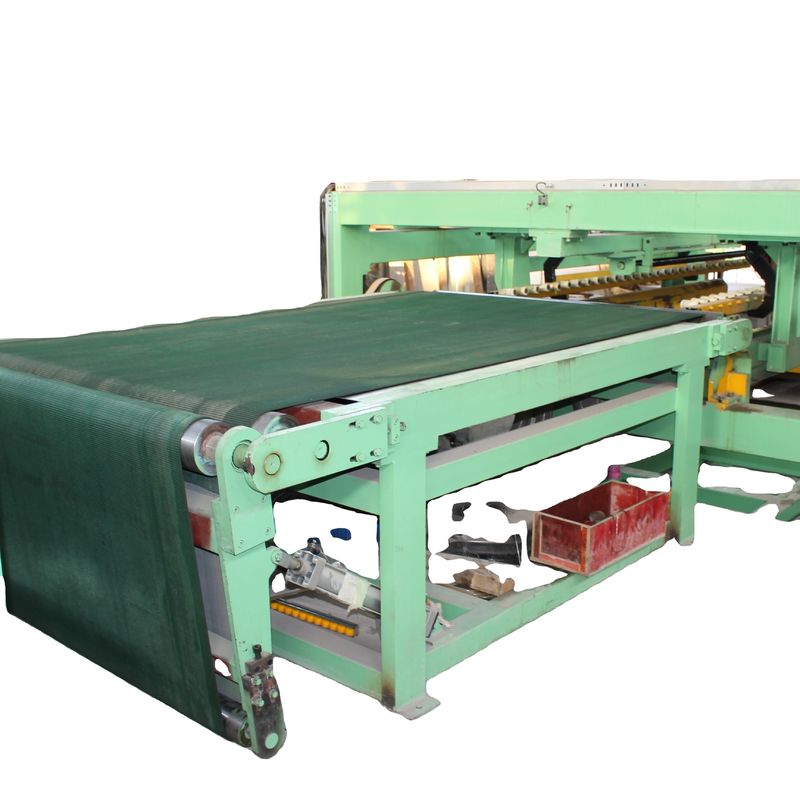

Rotary Shear Steel HR Coil Cutting Machine Cut To Length

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $46,000.00/sets 1-1 sets

Packaging Details: Standard packing Steel Coil Rotary Shear Cut To Length Line Shearing Machine Combined Cut-to-length And Slitting Line

Supply Ability: 15 Set/Sets per Year 1-6x2200mm China supplier steel coil leveling cutt-to-length Lin

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Rotary Shear hr coil cutting machine, Steel hr coil cutting machine, HR Coil rotary shear cut to length line


Cutting Width (mm):	500 - 1250 Mm	Material Thickness(mm):	0.3 - 2 Mm
Cutting Speed(m/min):	1 - 120 M/min	Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available	Marketing Type:	New Product 2021
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Coil Weight (T):	20T	Leveling Precision(±mm/m):	0.1 ±mm/m
Condition:	Used	Voltage:	380V
Rated Power:	200KW	Dimension(LWH):	28X8X2m
Weight:	5000	Year:	2021
Key Selling Points:	High Productivity	Warranty:	1 Year
Applicable Industries:	Construction Works , Building Material Shops, Manufacturing Plant	Showroom Location:	Egypt, Turkey, Italy, Spain, Ukraine
After-sales Service Provided:	Cut To Length Line Machine For Steel Coils	Coil Thickness:	0.3-2mm
Coil Width:	2200mm	Max Coil Weight:	25T
Cutting Precision:	+/-1mm	Max Cutting Length:	12m
Cutting Machine Power:	15kw	No Of Levellers:	13 Rolls
Levellers Diameter:	140mm	Product Name:	High Efficient Automatic Cut To Length Line
Port:	Shanghai Steel Coil Rotary Shear Cut To Length Line Shearing Machine Combined Cut-to-length And Slitting Line

Cutting Width (mm):	500 - 1250 Mm
Material Thickness(mm):	0.3 - 2 Mm
Cutting Speed(m/min):	1 - 120 M/min
Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available
Marketing Type:	New Product 2021
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Coil Weight (T):	20T
Leveling Precision(±mm/m):	0.1 ±mm/m
Condition:	Used
Voltage:	380V
Rated Power:	200KW
Dimension(LWH):	28X8X2m
Weight:	5000
Year:	2021
Key Selling Points:	High Productivity
Warranty:	1 Year
Applicable Industries:	Construction Works , Building Material Shops, Manufacturing Plant
Showroom Location:	Egypt, Turkey, Italy, Spain, Ukraine
After-sales Service Provided:	Cut To Length Line Machine For Steel Coils
Coil Thickness:	0.3-2mm
Coil Width:	2200mm
Max Coil Weight:	25T
Cutting Precision:	+/-1mm
Max Cutting Length:	12m
Cutting Machine Power:	15kw
No Of Levellers:	13 Rolls
Levellers Diameter:	140mm
Product Name:	High Efficient Automatic Cut To Length Line
Port:	Shanghai Steel Coil Rotary Shear Cut To Length Line Shearing Machine Combined Cut-to-length And Slitting Line

Rotary Shear Steel HR Coil Cutting Machine Cut To Length

This series line is used for HR coil(0.5mm-28mm) with different specifications, through uncoiling-leveling-cut to length to flattened plate as needed length. Composed of coil car, double support uncoiler, hydraulic pressing and guiding, shovel head, pre-leveler, finish leveler, cut to length machine, stacker, accompany electric control system, hydraulic system, etc. as well as pendulum middle plate, steering device.

Type	3×1600	6×2000	8×2000	10×2200	12×2200	16×2200	20×2500	25×2500
Thickness Range(mm)	0.3-3	1-6	2-8	2-10	3-12	4-16	6-20	8-25
Width Range(mm)	1600	2000	2000	2200	2200	2200	2500	2500
Cutting Length(mm)	300-4000	500-6000	600-8000	600-10000	800-12000	800-12000	800-12000	800-12000
Cutting precision(mm)	±0.5	±0.5	±1	±1	±1	±1	±1	±1
Roller Numbers	15	15	13	13	11	11	9	9
Roller Diameter(mm)	Ф85	Ф140	Ф155	Ф160	Ф180	Ф200	Ф230	Ф260

Product Name	0.23~0.3)*1000mm Slitting machine
Condition	new
Size	25m6m2m
Color	customized
Purpose	Slitting coils
Package	Standard packing
MQQ	1 set
Delivery	80-100 days
Shipment	Shanghai port
Payment Mode	T/T, L/C
Payment Condition	30% deposit in advance. Balance paid by TT before shipping.
Supply Capacity	3 sets per year
