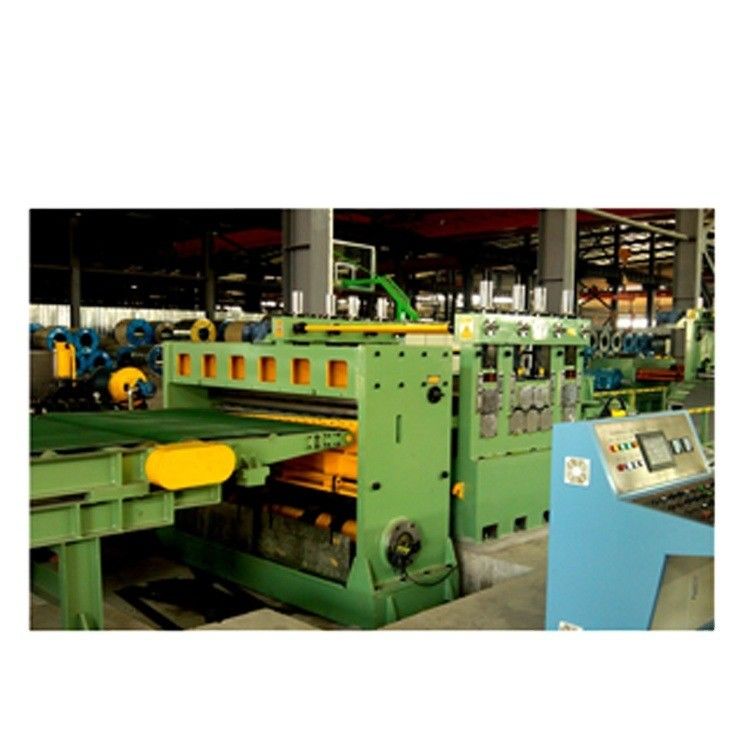

OEM CTL Sheet Metal Cut To Length Machine For Metal Processing

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $45,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                CTL sheet metal cut to length machine, OEM sheet metal cut to length machine, OEM ctl machine


Cutting Width (mm):	1000 - 12000 Mm	Material Thickness(mm):	1 - 8 Mm
Cutting Speed(m/min):	1 - 110 M/min	Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Coil Weight (T):	50T	Leveling Precision(±mm/m):	0.5 ±mm/m
Condition:	New	Voltage:	450V
Rated Power:	300KW	Dimension(LWH):	25m6m2m
Weight:	50000	Year:	2020
Key Selling Points:	High Productivity	Warranty:	1 Year
Applicable Industries:	Construction Works , Building Material Shops, Machinery Repair Shops, Manufacturing Plant	Showroom Location:	Turkey, Italy, France
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Product Name:	Cut-to-length Line
Control System:	PLC Automatic	Decoiler:	Hydraulic
Function:	Metal Processing	Type:	Cut To Length Line
Material:	Steel	Color:	Customized
Supply Capacity:	3 Sets Per Year	Name:	Cut To Length Machine Cut To Length Line

Cutting Width (mm):	1000 - 12000 Mm
Material Thickness(mm):	1 - 8 Mm
Cutting Speed(m/min):	1 - 110 M/min
Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Coil Weight (T):	50T
Leveling Precision(±mm/m):	0.5 ±mm/m
Condition:	New
Voltage:	450V
Rated Power:	300KW
Dimension(LWH):	25m6m2m
Weight:	50000
Year:	2020
Key Selling Points:	High Productivity
Warranty:	1 Year
Applicable Industries:	Construction Works , Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location:	Turkey, Italy, France
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	Cut-to-length Line
Control System:	PLC Automatic
Decoiler:	Hydraulic
Function:	Metal Processing
Type:	Cut To Length Line
Material:	Steel
Color:	Customized
Supply Capacity:	3 Sets Per Year
Name:	Cut To Length Machine Cut To Length Line

OEM CTL Sheet Metal Cut To Length Machine For Metal Processing

Company Profile

Products Description

1,What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well 2,Function This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc. 3,Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc..

Product Paramenters

item			specifications
Raw materials	Materials feature	Stainless steel
		thickness	0.5mm—4.0mm
		Aluminum feature	Tensile grade σb≤450MP Yield grade σs≤260MP
		width	300mm—1600mm
		O.D	Φ800mm—φ2000mm
		I.D	φ508mm—φ610mm
		Coil weight	Max 25T
Finished product	Flatness without any increased processment faults
		Cutting length	300mm—4000mm
		Leveling precision	less than 25% raw materials non-flatness(1.5-2mm/㎡)
		Cutting tolerance:	±0.5mm/1000mm( length tolerance) ±0.60mm/1000mm( diagonal tolerance) Match the standard GB/T709-88
Strip threading speed			10m/min
Line speed			10-80m/min
Cutting speed			0-25 pcs/ according to the length 2000mm
Total line power consumption			About 125kw
Center line of the line ( to the ground)			+1000mm
Space of the whole line			28mx9m
Line direction			Left input to right output
