Product Details
Place of Origin: Jiangsu, China
Brand Name: HRF
Payment & Shipping Terms
Price: $18,000.00/sets 1-1 sets
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
Showroom Location: |
Egypt, Turkey, Philippines, India, Russia, South Africa, None |
Condition: |
New |
Type: |
Tile Forming Machine |
Tile Type: |
Colored |
Use: |
Roof |
Production Capacity: |
15 M/min |
Voltage: |
380V 50HZ 3P |
Dimension(L*W*H): |
5000*1500*1500mm |
Weight: |
5400 Kg |
Warranty: |
1 Year |
Key Selling Points: |
Long Service Life |
Rolling Thinckness: |
0.3-0.8mm |
Feeding Width: |
1250mm |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Marketing Type: |
New Product 2021 |
Warranty Of Core Components: |
5 Years |
Core Components: |
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC |
Keywords: |
Standing Seam Metal Roofing Machine |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Main Power:: |
5.5KW |
Roll Stations:: |
12 Stations |
Length: |
5m |
Working Speed:: |
0-15m/min |
Thickness:: |
0.4mm--0.9mm |
Electrical:: |
380V,50Hz,3Ph |
Size Of Machine:: |
Approx5.5m*1.0m*1.4m |
Name: |

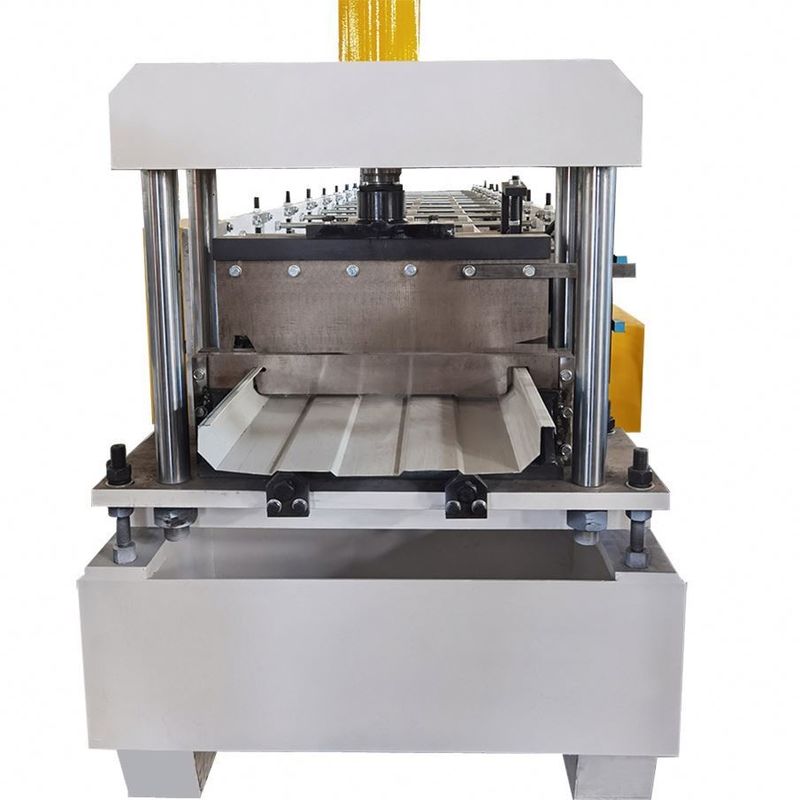

Standing Seam Roll Forming Machine |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
Showroom Location: |
Egypt, Turkey, Philippines, India, Russia, South Africa, None |
Condition: |
New |
Type: |
Tile Forming Machine |
Tile Type: |
Colored |
Use: |
Roof |
Production Capacity: |
15 M/min |
Voltage: |
380V 50HZ 3P |
Dimension(L*W*H): |
5000*1500*1500mm |
Weight: |
5400 Kg |
Warranty: |
1 Year |
Key Selling Points: |
Long Service Life |
Rolling Thinckness: |
0.3-0.8mm |
Feeding Width: |
1250mm |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Marketing Type: |
New Product 2021 |
Warranty Of Core Components: |
5 Years |
Core Components: |
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC |
Keywords: |
Standing Seam Metal Roofing Machine |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Main Power:: |
5.5KW |
Roll Stations:: |
12 Stations |
Length: |
5m |
Working Speed:: |
0-15m/min |
Thickness:: |
0.4mm--0.9mm |
Electrical:: |
380V,50Hz,3Ph |
Size Of Machine:: |
Approx5.5m*1.0m*1.4m |
Name: |
Standing Seam Roll Forming Machine |
|
Main Power:
|
5.5KW motor made inChina
|
|
ØRoll Stations:
|
12 stations
|
|
ØSingle Row
|
1.0inch chaindrive
|
|
ØDiameter ofShaft:
|
￠70mm
|
|
ØCutting System:
|
hydraulicstop-to-cut
|
|
ØCutting LengthTolerance:
|
3±1.5mm
|
|
ØWorking Speed:
|
0-15m/min
|
|
ØThickness:
|
0.4mm--0.9mm,G350Mpa tensile galvanized or prepainted steel sheet oralumzinc
|
|
ØMaterial of the Rollers:
|
Cr12Mov,HRC58--62
|
|
ØMaterial of Blade Mould:
|
Cr12Mov quenched58-62
|
|
ØSize of Machine:
|
approx5.5m*1.0m*1.4m
|
|
ØElectrical:
|
380V,50Hz,3Ph
|
