Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Portable standing seam metal roof machine, 0.3mm standing seam metal roof machine, 0.8mm portable standing seam machine


Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Showroom Location:	Egypt, Turkey, Philippines, India, Russia, South Africa, None
Condition:	New	Type:	Tile Forming Machine
Tile Type:	Colored	Use:	Roof
Production Capacity:	15 M/min	Voltage:	380V 50HZ 3P
Dimension(LWH):	500015001500mm	Weight:	5400 Kg
Warranty:	5 Years	Key Selling Points:	Long Service Life
Rolling Thinckness:	0.3-0.8mm	Feeding Width:	1250mm
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	New Product 2021	Warranty Of Core Components:	5 Years
Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Main Power::	5.5KW	Roll Stations::	12 Stations
Working Speed::	0-15m/min	Thickness::	0.4mm--0.9mm
Length:	5m	Electrical::	380V,50Hz,3Ph
Keywords:	Standing Seam Metal Roofing Machine	Size Of Machine::	Approx5.5m1.0m1.4m
Name:	Standing Seam Roll Forming Machine

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:	Egypt, Turkey, Philippines, India, Russia, South Africa, None
Condition:	New
Type:	Tile Forming Machine
Tile Type:	Colored
Use:	Roof
Production Capacity:	15 M/min
Voltage:	380V 50HZ 3P
Dimension(LWH):	500015001500mm
Weight:	5400 Kg
Warranty:	5 Years
Key Selling Points:	Long Service Life
Rolling Thinckness:	0.3-0.8mm
Feeding Width:	1250mm
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Marketing Type:	New Product 2021
Warranty Of Core Components:	5 Years
Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Main Power::	5.5KW
Roll Stations::	12 Stations
Working Speed::	0-15m/min
Thickness::	0.4mm--0.9mm
Length:	5m
Electrical::	380V,50Hz,3Ph
Keywords:	Standing Seam Metal Roofing Machine
Size Of Machine::	Approx5.5m1.0m1.4m
Name:	Standing Seam Roll Forming Machine

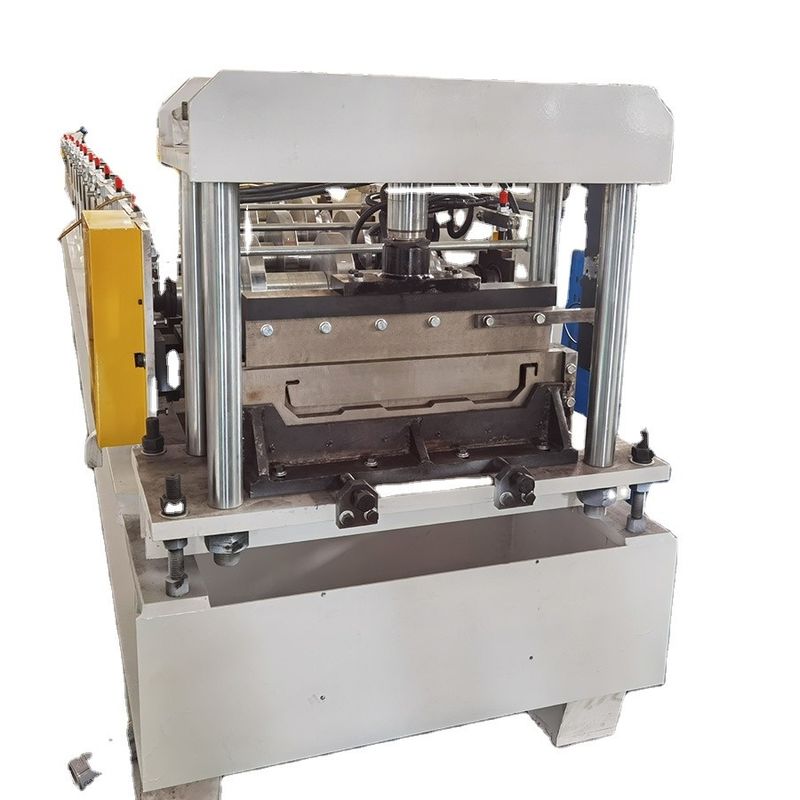

Portable Standing Seam Metal Roof Machine 0.3mm-0.8mm Rolling

Main Power:	5.5KW motor made inChina
ØRoll Stations:	12 stations
ØSingle Row	1.0inch chaindrive
ØDiameter ofShaft:	￠70mm
ØCutting System:	hydraulicstop-to-cut
ØCutting LengthTolerance:	3±1.5mm
ØWorking Speed:	0-15m/min
ØThickness:	0.4mm--0.9mm,G350Mpa tensile galvanized or prepainted steel sheet oralumzinc
ØMaterial of the Rollers:	Cr12Mov,HRC58--62
ØMaterial of Blade Mould:	Cr12Mov quenched58-62
ØSize of Machine:	approx5.5m1.0m1.4m
ØElectrical:	380V,50Hz,3Ph
