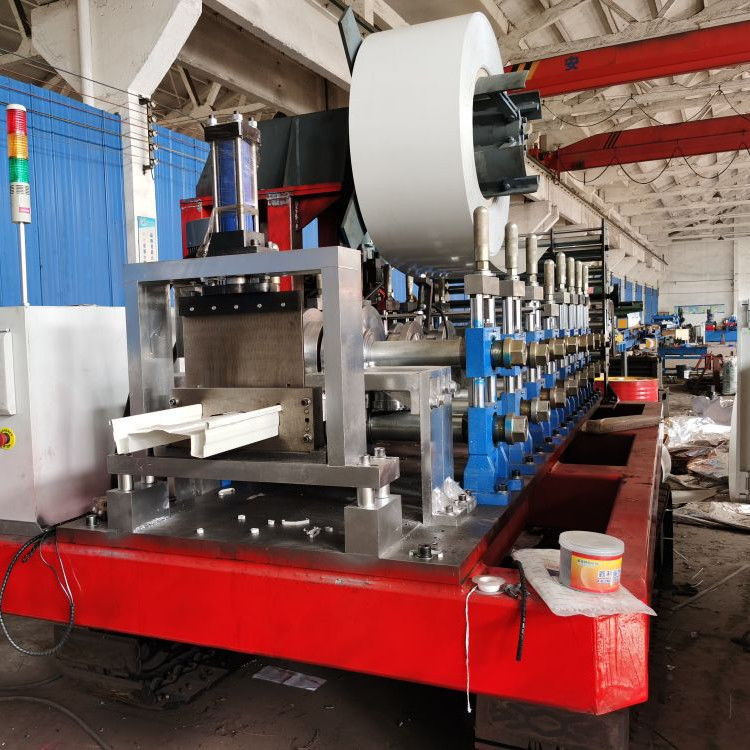

Portable Eavestrough 5 Inch Gutter Machine 5T Decoiler Customized

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $35,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Portable 5 inch gutter machine, Eavestrough 5 inch gutter machine, Customized eavestrough machine


Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works	Showroom Location:	Egypt, Turkey, Italy, Pakistan, Mexico, South Africa, Japan
Condition:	New	Type:	Tile Forming Machine
Tile Type:	Steel	Use:	WALL
Production Capacity:	15-20m/min	Voltage:	380V
Dimension(LWH):	9500X1500X1600mm	Weight:	3 Kg
Warranty:	1 Year	Key Selling Points:	HIGH PRODUCTIVITY
Rolling Thinckness:	1.5-2.0mm	Feeding Width:	500-1000mm
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	Supermarket Rack Roll Metal Forming Machine	Material Thickness:	1.5-2.5mm G350Mpa
Forming Speed:	12-18m/min	Roll Station:	18stations
Main Power:	11kw	Hydraulic Power:	5.5kw
Control System:	PLC Panasonic/omron/simens/mitsubishi	Decoiler:	5T/manual Decoiler ( Coil Car As Option)
Name:	Rain Gutter Forming Machine Greenhouse Gutter Roll Forming Machine

Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works
Showroom Location:	Egypt, Turkey, Italy, Pakistan, Mexico, South Africa, Japan
Condition:	New
Type:	Tile Forming Machine
Tile Type:	Steel
Use:	WALL
Production Capacity:	15-20m/min
Voltage:	380V
Dimension(LWH):	9500X1500X1600mm
Weight:	3 Kg
Warranty:	1 Year
Key Selling Points:	HIGH PRODUCTIVITY
Rolling Thinckness:	1.5-2.0mm
Feeding Width:	500-1000mm
Machinery Test Report:	Not Available
Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	Supermarket Rack Roll Metal Forming Machine
Material Thickness:	1.5-2.5mm G350Mpa
Forming Speed:	12-18m/min
Roll Station:	18stations
Main Power:	11kw
Hydraulic Power:	5.5kw
Control System:	PLC Panasonic/omron/simens/mitsubishi
Decoiler:	5T/manual Decoiler ( Coil Car As Option)
Name:	Rain Gutter Forming Machine Greenhouse Gutter Roll Forming Machine

Portable Eavestrough 5 Inch Gutter Machine 5T Decoiler Customized

Company Profile

Product Description

we use H -beam welding for the frame,After polishing and painted the color , the cutting blade with the rollers are use Cr12,quenched 58-62,all electrical parts use import brand ,After all processing, the machine achieves perfect construction and long life.

Details Images

Profile drawing

Production process

3T manual decoiler---Feeding and guiding--- --Roll Forming--hydraulic Cutting--Outables

Product Paramenters

Main power:15KW motor made in China Driving system: double 1 inch chain drive Roll stations: 18 stations, Machine structure: welded panel structure Material of roller: GCr15 HRC58-62 Diameter of shaft:￠70mm Max Line speed of roll forming machine: 20m/min

1. 3T Manual Decoiler,1 set

2. Roll forming machine,1 set

3. Cutting blade, 1 set

4. Hydraulic station,1 set

5. PLC control cabinet,1 set

6. Out table (4m),1 set

7. Spare incluing: 2 switches, a set of tool box
