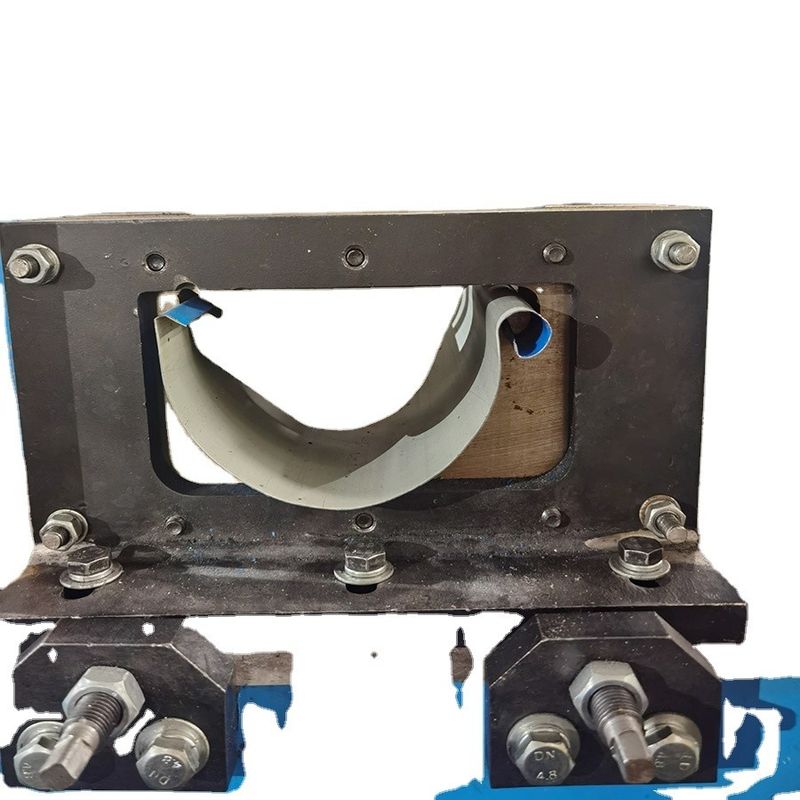

Small Gutter Bending Machine Cutter for Tile Forming

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $40,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Small gutter bending machine, Tile Forming gutter bending machine, Tile Forming gutter cutter machine


Applicable Industries:	Building Material Shops, Machinery Repair Shops, Construction Works	Showroom Location:	Egypt, Turkey, United States, France, Russia, South Korea
Condition:	New	Type:	Tile Forming Machine
Tile Type:	Steel	Use:	Other
Production Capacity:	12-15m/min	Voltage:	380V 50Hz 3phases
Dimension(LWH):	8.5mx1.5mx1.6m	Weight:	5 Kg
Warranty:	1 Year	Key Selling Points:	High Productivity
Rolling Thinckness:	0.2-1.0mm	Feeding Width:	915mm
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Motor Power:	7.5kw	Forming Stations:	17 Stations
Thickness:	0.3-0.8mm	Working Speed:	12-15m/min
Rollers Material:	45# Steel	Drive Way:	Chain
Name:	Gutter Roll Forming Machine Rain Gutter Forming Machine

Applicable Industries:	Building Material Shops, Machinery Repair Shops, Construction Works
Showroom Location:	Egypt, Turkey, United States, France, Russia, South Korea
Condition:	New
Type:	Tile Forming Machine
Tile Type:	Steel
Use:	Other
Production Capacity:	12-15m/min
Voltage:	380V 50Hz 3phases
Dimension(LWH):	8.5mx1.5mx1.6m
Weight:	5 Kg
Warranty:	1 Year
Key Selling Points:	High Productivity
Rolling Thinckness:	0.2-1.0mm
Feeding Width:	915mm
Machinery Test Report:	Not Available
Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Gear, Gearbox, Engine, PLC
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Motor Power:	7.5kw
Forming Stations:	17 Stations
Thickness:	0.3-0.8mm
Working Speed:	12-15m/min
Rollers Material:	45# Steel
Drive Way:	Chain
Name:	Gutter Roll Forming Machine Rain Gutter Forming Machine

Small Gutter Bending Machine Cutter for Tile Forming

ITEM

PARAMETER

REMARK

Suitable material

CR/HR coil,G350Mpa

. 2

Finished purlin dimension

1)C/Z purlin width: 80-300mm automatic adjustment
2) C/Z purlin flange height:40-100mm automatic adjustment
3)Lip size:15-20mm
4) Thickness: 1.5-3.2mm

Roll Forming structure

Casting stands structure with 18 nos + series of vertical rollers

Casting stands

Main forming machine motor power(kw)

18.5kw

Siemens motor made in china

9 rolls Leveling motor( 4+5 rolls)

5.5kw

motor,made in china

Hydraulic station power(kw) for main

11kw

Motor made in china

forming machine

Motors for the height adjustment

1.5kw( 2-0.75kw)

Motor made in china

Motor for purlin width adjustment

1-1.5kw

Motor made in china

Hydraulic station for main hydraulic decoiler

3kw

motor,made in china

Total power(kw)

About 51kw

Power supply requirement

380V,50Hz,3Ph

Machine dimension(LxWxH,m)

15mx2.5mx1.6m

Machine color

Blue with yellow color combination

FAQ

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
