Product Details
Place of Origin: Guangdong, China
Brand Name: HRF
Payment & Shipping Terms
Price: $26,000.00/sets 1-1 sets
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Construction Works |
Showroom Location: |
Turkey, Germany, India, Russia, South Korea, Uzbekistan |
Condition: |
New |
Type: |
Tile Forming Machine |
Tile Type: |
Glazed |
Use: |
WALL |
Production Capacity: |
8 -10 M/min |
Voltage: |
380V Or As Customize |
Dimension(L*W*H): |
12x2.2x3m |
Weight: |
10 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High Productivity |
Rolling Thinckness: |
0.7mm-1.5mm |
Feeding Width: |
100-600mm |
Machinery Test Report: |
Not Available |
Video Outgoing-inspection: |
Not Available |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
Material Thickness: |
0.7-1.5mm |
Control System: |
Automatic |
Main Power: |
15kw |
Forming Station: |
18 |
Work Speed: |
15-20m/min |
Way Of Drive: |
Chain ,1 Inch |
Plc: |
Mitsubishi/delixi/ |
Raw Material: |
PPGI |
Name: |
Strut Channel Roll Forming Machine |
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Construction Works |
Showroom Location: |
Turkey, Germany, India, Russia, South Korea, Uzbekistan |
Condition: |
New |
Type: |
Tile Forming Machine |
Tile Type: |
Glazed |
Use: |
WALL |
Production Capacity: |
8 -10 M/min |
Voltage: |
380V Or As Customize |
Dimension(L*W*H): |
12x2.2x3m |
Weight: |
10 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High Productivity |
Rolling Thinckness: |
0.7mm-1.5mm |
Feeding Width: |
100-600mm |
Machinery Test Report: |
Not Available |
Video Outgoing-inspection: |
Not Available |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
Material Thickness: |
0.7-1.5mm |
Control System: |
Automatic |
Main Power: |
15kw |
Forming Station: |
18 |
Work Speed: |
15-20m/min |
Way Of Drive: |
Chain ,1 Inch |
Plc: |
Mitsubishi/delixi/ |
Raw Material: |
PPGI |
Name: |
Strut Channel Roll Forming Machine |
|
NO.
|
Name
|
Quant.
|
Remark
|
|
1
|
5T hydraulic Motoized decoiler
|
1 set
|
1)Max 5T
2)Max coil:500mm 3)Motor:5.5kw made in China |
|
2
|
Leveling machine
|
1 set
|
1) 7 rolls leveling( top 3 rolls and bottom 4 rolls)
2)Rolls material:40Cr 3)Leveling speed:max 20m/min 4)5.5kwdriving-motor,speed adjustable |
|
3
|
Speed control sensor
|
1 set
|
It can make the punching and forming speed simutaneous
|
|
4
|
SRF300B servo motor Feeder
|
1 set
|
1)Feeding speed:max 20m/min
2)Mitsubishi servo-feeder system and PLC,made in Japan 3) 70 mm feeder rolls |
|
5
|
Punching press
|
1 set
|
1)Model:JF21-80
2)Motor:11KW 3)Slide stroke:max 45 times /min |
|
6
|
Punching mould
|
1 set
|
1)Mould material Cr12Mov
|
|
7
|
Main forming
Machine unit |
1 set
|
1)20 forming stands
2) Cast iron stands 3)Gearbox drive 4) power:45kw |
|
8
|
Turkish head
|
1 set
|
It can make the product straight
|
|
8
|

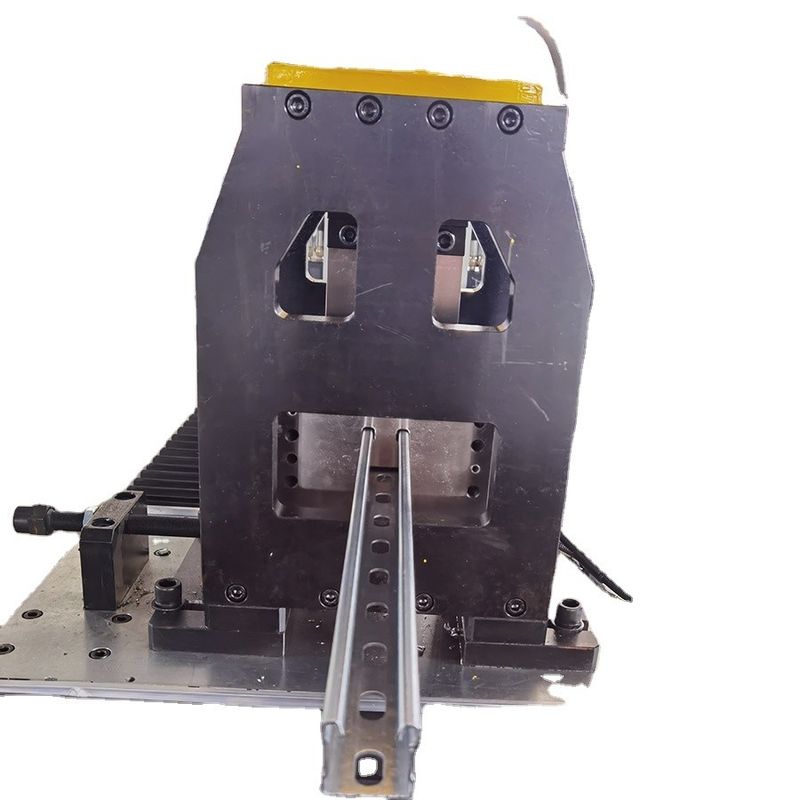

Flying shear
|
1 set
|
1)Yaskawa servo-motor control with ball screw
2)Servo-motor power 3 kw |
|
9
|
Cutting blade
|
10 sets
|
Cr12
|
|
10
|
motorized table
|
1 set
|
1) Length :6m
2) Pneumatic control |
|
11
|
Electric panel
|
1 set
|
1)PLC control system,Panasonic/Siemens
2)Yaskawa inverter 3)Omron encoder |
|
12
|
Cooling&lubrication system
|
--
|
---
|
