Full Automatic Purlin Rolling Machine C And Z Purlin Machine

Product Details

Place of Origin: China

Brand Name: HRF

Payment & Shipping Terms

Price: $20,000.00/sets 1-1 sets

Get Best Price
Highlight:

Full Automatic purlin rolling machine

,

C And Z purlin rolling machine

,

Full Automatic c and z purlin machine

Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works
Showroom Location:
Turkey, Italy, France
Condition:
New
Type:
Purlin Forming Machine
Tile Type:
Steel
Use:
WALL
Production Capacity:
15 M/min
Voltage:
380V
Dimension(L*W*H):
6000X200X160mm
Weight:
10 Kg
Warranty:
1 Year
Key Selling Points:
High Productivity
Rolling Thinckness:
0.2-1.0mm
Feeding Width:
1220mm
Machinery Test Report:
Not Available
Video Outgoing-inspection:
Not Available
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
CUZ Purlin Forming Machine
Application:
Steel Fabrication
Way Of Changing:
Automatic
Thickness:
1.5-3.0mm
Forming Stations:
20
Motor Power:
22kw
Main Shafts Diameter:
80mm
Drive:
Chain Or Gearbox
Name:
C Z Purlin Roll Forming Machine Full Automatic Z Purlin Machine
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works
Showroom Location:
Turkey, Italy, France
Condition:
New
Type:
Purlin Forming Machine
Tile Type:
Steel
Use:
WALL
Production Capacity:
15 M/min
Voltage:
380V
Dimension(L*W*H):
6000X200X160mm
Weight:
10 Kg
Warranty:
1 Year
Key Selling Points:
High Productivity
Rolling Thinckness:
0.2-1.0mm
Feeding Width:
1220mm
Machinery Test Report:
Not Available
Video Outgoing-inspection:
Not Available
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Name:
CUZ Purlin Forming Machine
Application:
Steel Fabrication
Way Of Changing:
Automatic
Thickness:
1.5-3.0mm
Forming Stations:
20
Motor Power:
22kw
Main Shafts Diameter:
80mm
Drive:
Chain Or Gearbox
Name:
C Z Purlin Roll Forming Machine Full Automatic Z Purlin Machine

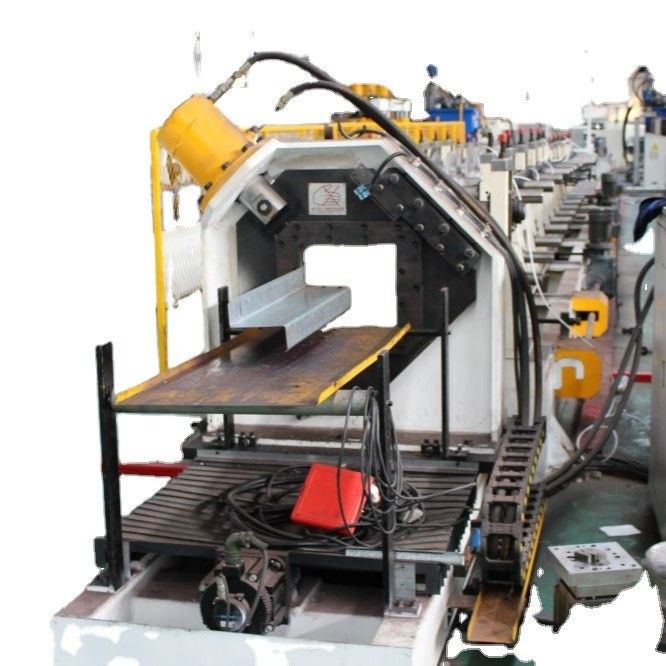

Full Automatic Purlin Rolling Machine C And Z Purlin Machine
Full Automatic Purlin Rolling Machine C And Z Purlin Machine 0

Full Automatic Purlin Rolling Machine C And Z Purlin Machine 1
Full Automatic Purlin Rolling Machine C And Z Purlin Machine 2
NO
ITEM



PARAMETER


REMARK









1.
Suitable material












CR/HR coil,G350Mpa







































. 2
Finished purlin dimension



1)C/Z purlin width: 80-300mm automatic adjustment
2) C/Z purlin flange height:40-100mm automatic adjustment
3)Lip size:15-20mm
4) Thickness: 1.5-3.2mm



3.
Roll Forming structure



Casting stands structure with 18 nos + series of vertical rollers


Casting stands
4.
Main forming machine motor power(kw)



18.5kw


Siemens motor made in china
5.
9 rolls Leveling motor( 4+5 rolls)



5.5kw


motor,made in china
6.
Hydraulic station power(kw) for main



11kw


Motor made in china

forming machine







7.
Motors for the height adjustment



1.5kw( 2-0.75kw)


Motor made in china
8
Motor for purlin width adjustment



1-1.5kw


Motor made in china
9.
Hydraulic station for main hydraulic decoiler



3kw


motor,made in china
10
Total power(kw)



About 51kw



11
Power supply requirement



380V,50Hz,3Ph



12
Machine dimension(LxWxH,m)



15mx2.5mx1.6m












13
Machine color



Blue with yellow color combination



Full Automatic Purlin Rolling Machine C And Z Purlin Machine 3
Full Automatic Purlin Rolling Machine C And Z Purlin Machine 4
Full Automatic Purlin Rolling Machine C And Z Purlin Machine 5
Full Automatic Purlin Rolling Machine C And Z Purlin Machine 6
Full Automatic Purlin Rolling Machine C And Z Purlin Machine 7
Full Automatic Purlin Rolling Machine C And Z Purlin Machine 8

FAQ

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
