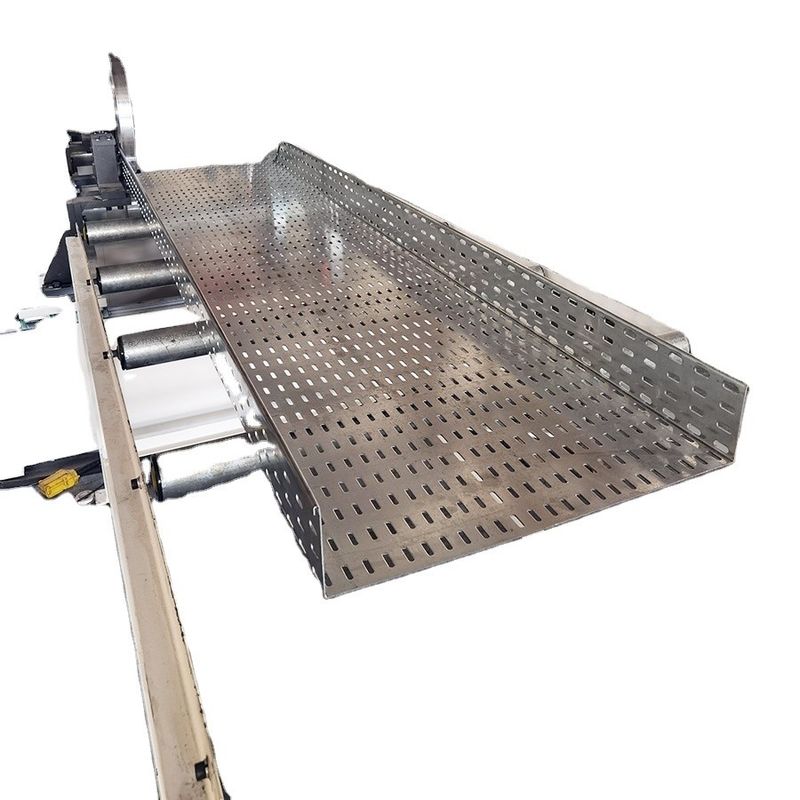

380V 50KW Cable Tray Forming Machine Metal Roofing Roll Former

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $50,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Roll Cable Tray Forming Machine, Metal Roofing Cable Tray Forming Machine, Cable Tray metal roofing roll former


Type:	Steel Frame & Purlin Machine	Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works
Showroom Location:	Turkey, Italy, South Korea, South Africa	Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Work Pressure:	50KW
Production Capacity:	15m/s	Voltage:	380V
Power:	50KW	Dimension(LWH):	9X3X2m
Weight:	3000 Kg	Warranty:	1 Year
Key Selling Points:	HIGH PRODUCTTIVITY	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Main Motor Power:	15kw	Material Thickness:	1.5-3mm
Drive Way:	Chain	Control System:	PLC
Product:	C/Z Purlin	Decoiler Type:	Hydraulic
Raw Material:	CR.HR.GI	Keywords:	Fully Automatic Roll Forming Machine Cable Tray Manufacturing Machine
Name:	Cable Tray Machine

Type:	Steel Frame & Purlin Machine
Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works
Showroom Location:	Turkey, Italy, South Korea, South Africa
Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New
Work Pressure:	50KW
Production Capacity:	15m/s
Voltage:	380V
Power:	50KW
Dimension(LWH):	9X3X2m
Weight:	3000 Kg
Warranty:	1 Year
Key Selling Points:	HIGH PRODUCTTIVITY
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Main Motor Power:	15kw
Material Thickness:	1.5-3mm
Drive Way:	Chain
Control System:	PLC
Product:	C/Z Purlin
Decoiler Type:	Hydraulic
Raw Material:	CR.HR.GI
Keywords:	Fully Automatic Roll Forming Machine Cable Tray Manufacturing Machine
Name:	Cable Tray Machine

380V 50KW Cable Tray Forming Machine Metal Roofing Roll Former

Advantages: ♥ Customized according to customer requirements. ♥ Over 15 years of experience

♥ Favorable price and easy operation ♥ Provide technical guidance, production, installation, commissioning and maintenance services for our customers

♥ Exported to more than 40 countries worldwide, widely praised

NO.	Name	QTY	Remark
1	5T hydraulic decoiler	1 set
2	Pinch leveler	1 set
3	Servo feeder hydraulic punching pressure mechanism	1 set	Including punching moulds and stretching moulds
4	Cover plate forming machine	1 set
5	Cable tray roll forming machine	1 set	Including hydraulic cutting mechanism and cutting moulds
6	Electric control system	5sets	Including uncoiling, leveling, hydraulic punching, cover plate roll forming machine and cable tray roll forming machine
7	Hydraulic control system	3sets	Including uncoiling, leveling, hydraulic punching, cover plate roll forming machine and cable tray roll forming machine
8	Outables	4sets	Cover plate and cable tray each 2 pieces

FAQ

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
