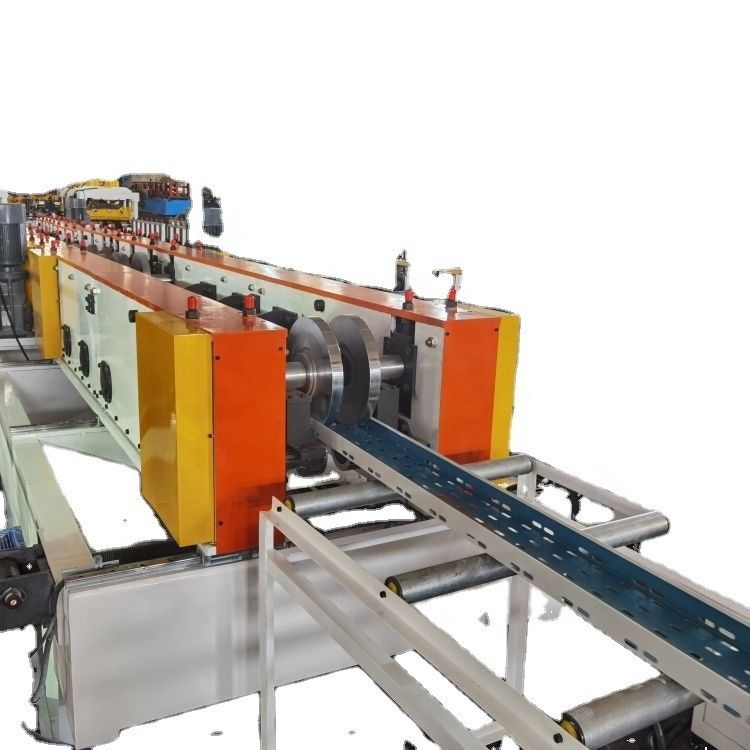

Fully Automatic Cable Tray Forming Machine Manufacturing 4.4KW

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $20,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Fully Automatic Cable Tray Forming Machine, 4.4KW Cable Tray Forming Machine, 4.4KW cable tray manufacturing machine


Applicable Industries:	Garment Shops, Building Material Shops, Construction Works	Showroom Location:	Turkey, Italy
Condition:	New	Type:	Tile Forming Machine
Tile Type:	Steel	Use:	ROOF
Production Capacity:	60 M/min	Voltage:	380V
Dimension(LWH):	9X1.4X1.6M	Weight:	20 Kg
Warranty:	1 Year	Key Selling Points:	High Productivity
Rolling Thinckness:	0.3-1mm	Feeding Width:	1220mm
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Gearbox, Engine, PLC	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Control System:	PLC(imported Brand)	Roll Station:	16 Rolls
Roller Diameter:	70mm	Hydraulic Power:	3KW
Number Of Leveling Rollers:	7 Rollers	Punched Speed:	80times/min, Each Advance 200mm
Finished Cable Tray Length:	3000mm	Flying Servo Motor:	4.4 KW
Name:	High Speed Fully Cable Tary Roll Forming Machine Roll Forming Machine

Applicable Industries:	Garment Shops, Building Material Shops, Construction Works
Showroom Location:	Turkey, Italy
Condition:	New
Type:	Tile Forming Machine
Tile Type:	Steel
Use:	ROOF
Production Capacity:	60 M/min
Voltage:	380V
Dimension(LWH):	9X1.4X1.6M
Weight:	20 Kg
Warranty:	1 Year
Key Selling Points:	High Productivity
Rolling Thinckness:	0.3-1mm
Feeding Width:	1220mm
Machinery Test Report:	Not Available
Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Gearbox, Engine, PLC
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Control System:	PLC(imported Brand)
Roll Station:	16 Rolls
Roller Diameter:	70mm
Hydraulic Power:	3KW
Number Of Leveling Rollers:	7 Rollers
Punched Speed:	80times/min, Each Advance 200mm
Finished Cable Tray Length:	3000mm
Flying Servo Motor:	4.4 KW
Name:	High Speed Fully Cable Tary Roll Forming Machine Roll Forming Machine

Fully Automatic Cable Tray Forming Machine Manufacturing 4.4KW

Advantages: ♥ Customized according to customer requirements. ♥ Over 15 years of experience

♥ Favorable price and easy operation ♥ Provide technical guidance, production, installation, commissioning and maintenance services for our customers

♥ Exported to more than 40 countries worldwide, widely praised

NO.	Name	QTY	Remark
1	5T hydraulic decoiler	1 set
2	Pinch leveler	1 set
3	Servo feeder hydraulic punching pressure mechanism	1 set	Including punching moulds and stretching moulds
4	Cover plate forming machine	1 set
5	Cable tray roll forming machine	1 set	Including hydraulic cutting mechanism and cutting moulds
6	Electric control system	5sets	Including uncoiling, leveling, hydraulic punching, cover plate roll forming machine and cable tray roll forming machine
7	Hydraulic control system	3sets	Including uncoiling, leveling, hydraulic punching, cover plate roll forming machine and cable tray roll forming machine
8	Outables	4sets	Cover plate and cable tray each 2 pieces

Get the latest offer now!

FAQ

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
