Custom Profile Sheet Door Frame Forming Machine Roll Former

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $25,000.00/sets 1-1 sets

Get Best Price
Highlight:

Custom Door Frame Forming Machine

,

Door Frame Forming Machine Roll Former

,

profile sheet machine Roll Former

Applicable Industries:
Building Material Shops, Machinery Repair Shops, Construction Works
Showroom Location:
Morocco, UAE
Condition:
New
Type:
Door Frame Forming Machine
Tile Type:
Steel
Use:
Other
Production Capacity:
8-12m/min
Voltage:
380V
Dimension(L*W*H):
5m*1.3m*1.3m-15m*1.3m*1.4m
Weight:
3.5 Kg
Warranty:
1 Year
Key Selling Points:
High Productivity
Rolling Thinckness:
0.2-1.0mm
Feeding Width:
1200mm
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Max Speed:
12-16m/min
Cutting Way:
Hydraulic Cutting
Control System:
PLC
Product Name:
Shutter Door Forming Machine
Main Power:
5.5Kw
Decoiler Type:
Hydraulic
Name:
Door Panel Making Machine Metal Door Frame Making Machinery
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Construction Works
Showroom Location:
Morocco, UAE
Condition:
New
Type:
Door Frame Forming Machine
Tile Type:
Steel
Use:
Other
Production Capacity:
8-12m/min
Voltage:
380V
Dimension(L*W*H):
5m*1.3m*1.3m-15m*1.3m*1.4m
Weight:
3.5 Kg
Warranty:
1 Year
Key Selling Points:
High Productivity
Rolling Thinckness:
0.2-1.0mm
Feeding Width:
1200mm
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty Of Core Components:
1 Year
Core Components:
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Max Speed:
12-16m/min
Cutting Way:
Hydraulic Cutting
Control System:
PLC
Product Name:
Shutter Door Forming Machine
Main Power:
5.5Kw
Decoiler Type:
Hydraulic
Name:
Door Panel Making Machine Metal Door Frame Making Machinery
Custom Profile Sheet Door Frame Forming Machine Roll Former

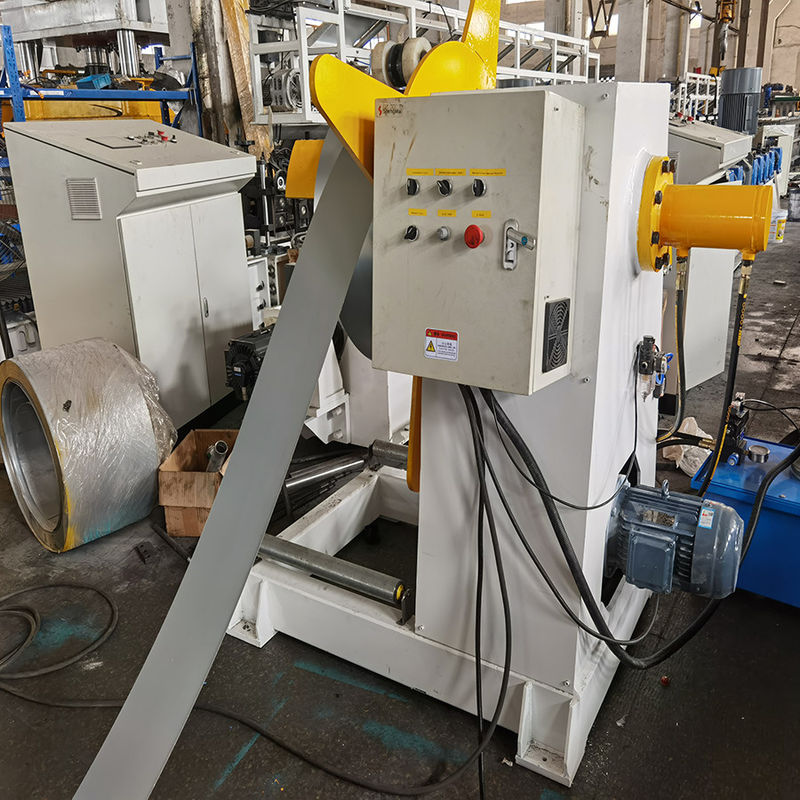

Custom Profile Sheet Door Frame Forming Machine Roll Former 0

Custom Profile Sheet Door Frame Forming Machine Roll Former 1
Custom Profile Sheet Door Frame Forming Machine Roll Former 2
NO.
Name
QTY
Remark
1
3T single-head manual de-coiler
1 set
1)Max3T
2)Manual inner expansion,expansion range:460-520mm
2
Leveling machine
1 set
1) 11 rolls leveling(2+7+2rolls)
2)4 pinch rolls diameter:80mm,levelling rolls dia 60mm
3)Levelling motor:2.2kw
3
Servo-feeder unit
1 set
1) Mitsubishi or Yaskawa servo-motor for feeding
2)Motor power:0.85kw
4
Punching press

1) Punching capacity:45T
2) Punching times:30 times/minute
3) Punching moulds: 1 set
5
Roll forming machine
1 set
1)Torri stands structure( see the picture below)
2)12 forming stands
3)7.5KW motor made in China
4)Shaft dia:60mm
5)chain drive
6
Hydraulic cutting unit
1 set
1)Hydraulic cutting with stop-to-cut
2)Cutting blade material:Cr12Mov
3)Cutting blade:2 sets
7
4m outables
1 set
1)Max length:4m
2)Length:2m/each piece
8
Electric control panel
2 sets
1) 1 set control panel for main forming machine
2) 1 set of control panel for servo-feeder
3)PLC control,Mitsubishi made in Japan
9
Hydraulic system
2 sets
1)1 set hydraulic station for main forming machine
2)1 set hydraulic station for hydraulic decoiler
3)Solenoid made in China
Custom Profile Sheet Door Frame Forming Machine Roll Former 3
Custom Profile Sheet Door Frame Forming Machine Roll Former 4
Custom Profile Sheet Door Frame Forming Machine Roll Former 5
Custom Profile Sheet Door Frame Forming Machine Roll Former 6
Custom Profile Sheet Door Frame Forming Machine Roll Former 7
Custom Profile Sheet Door Frame Forming Machine Roll Former 8

FAQ

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
