Product Details
Place of Origin: Jiangsu, China
Brand Name: HRF
Payment & Shipping Terms
Price: $30,000.00/sets 1-1 sets
Packaging Details: Formal packaging used sandwich panel line sandwich panel making machine wall pu roof sandwich panel product line
Applicable Industries: |
Building Material Shops, Machinery Repair Shops, Construction Works |
Showroom Location: |
Morocco, UAE |
Condition: |
New |
Type: |
Door Frame Forming Machine |
Tile Type: |
Steel |
Use: |
Other |
Production Capacity: |
8-12m/min |
Voltage: |
380V |
Dimension(L*W*H): |
5m*1.3m*1.3m-15m*1.3m*1.4m |
Weight: |
3.5 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High Productivity |
Rolling Thinckness: |
0.2-1.0mm |
Feeding Width: |
1200mm |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Max Speed: |
12-16m/min |
Cutting Way: |
Hydraulic Cutting |
Control System: |
PLC |
Product Name: |
Shutter Door Forming Machine |
Main Power: |
5.5Kw |
Decoiler Type: |
Hydraulic |
Name: |
Shutter Door Roll Forming Machine Making |
Applicable Industries: |
Building Material Shops, Machinery Repair Shops, Construction Works |
Showroom Location: |
Morocco, UAE |
Condition: |
New |
Type: |
Door Frame Forming Machine |
Tile Type: |
Steel |
Use: |
Other |
Production Capacity: |
8-12m/min |
Voltage: |
380V |
Dimension(L*W*H): |
5m*1.3m*1.3m-15m*1.3m*1.4m |
Weight: |
3.5 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High Productivity |
Rolling Thinckness: |
0.2-1.0mm |
Feeding Width: |
1200mm |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Max Speed: |
12-16m/min |
Cutting Way: |
Hydraulic Cutting |
Control System: |
PLC |
Product Name: |
Shutter Door Forming Machine |
Main Power: |
5.5Kw |
Decoiler Type: |
Hydraulic |
Name: |
Shutter Door Roll Forming Machine Making |
|
NO.
|
Name
|
QTY
|
Remark
|
|
1
|
3T single-head manual de-coiler
|
1 set
|
1)Max3T
2)Manual inner expansion,expansion range:460-520mm |
|
2
|
Leveling machine
|
1 set
|
1) 11 rolls leveling(2+7+2rolls)
2)4 pinch rolls diameter:80mm,levelling rolls dia 60mm 3)Levelling motor:2.2kw |
|
3
|
Servo-feeder unit
|
1 set
|
1) Mitsubishi or Yaskawa servo-motor for feeding
2)Motor power:0.85kw |
|
4
|
Punching press
|
|
1) Punching capacity:45T
2) Punching times:30 times/minute 3) Punching moulds: 1 set |
|
5
|

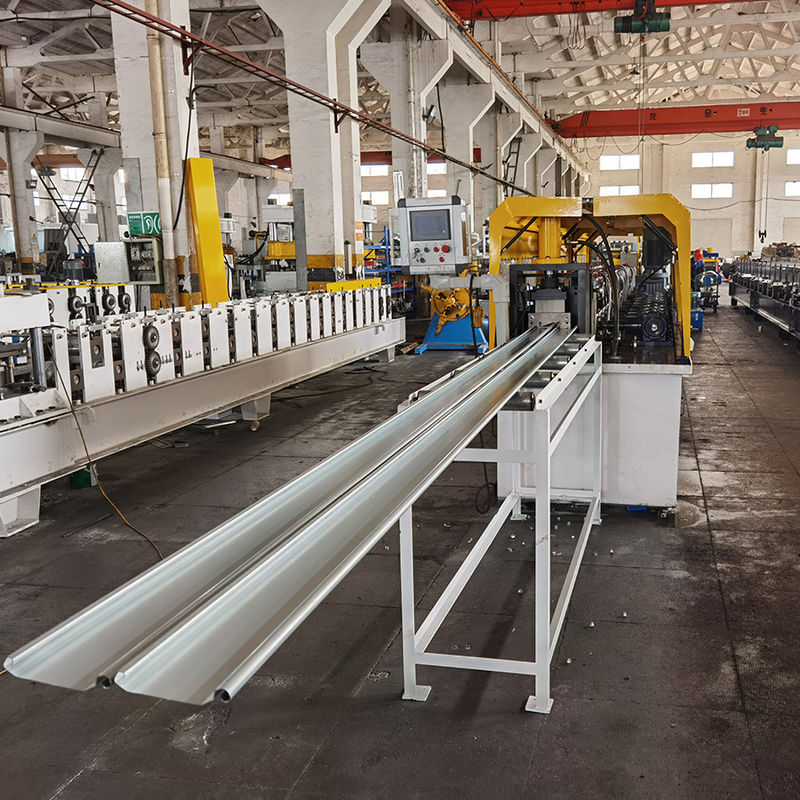

Roll forming machine
|
1 set
|
1)Torri stands structure( see the picture below)
2)12 forming stands 3)7.5KW motor made in China 4)Shaft dia:60mm 5)chain drive |
|
6
|
Hydraulic cutting unit
|
1 set
|
1)Hydraulic cutting with stop-to-cut
2)Cutting blade material:Cr12Mov 3)Cutting blade:2 sets |
|
7
|
4m outables
|
1 set
|
1)Max length:4m
2)Length:2m/each piece |
|
8
|
Electric control panel
|
2 sets
|
1) 1 set control panel for main forming machine
2) 1 set of control panel for servo-feeder 3)PLC control,Mitsubishi made in Japan |
|
9
|
Hydraulic system
|
2 sets
|
1)1 set hydraulic station for main forming machine
2)1 set hydraulic station for hydraulic decoiler 3)Solenoid made in China |
