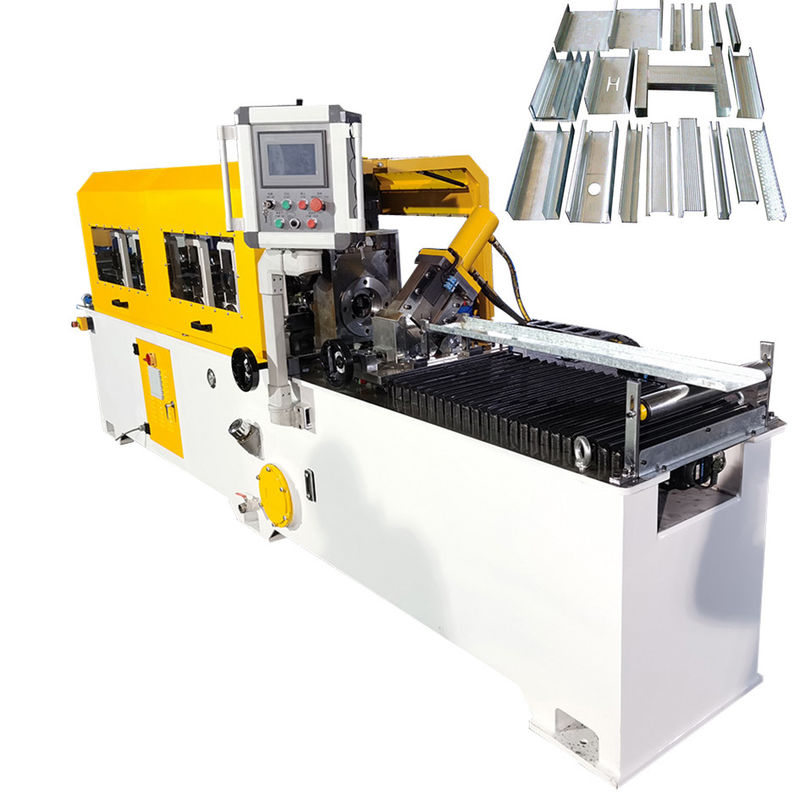

Automatic Sheet Metal Roofing Machine For Steel Frame Purlin Production

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $12,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Steel Frame metal roofing machine, Purlin metal roofing machine, Purlin roofing sheet manufacturing machine


Type:	Steel Frame & Purlin Machine	Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works
Showroom Location:	Turkey, Italy, South Korea, South Africa	Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New	Production Capacity:	15m/s
Voltage:	380V	Power:	50KW
Dimension(LWH):	9X3X2m	Weight:	8 Kg
Warranty:	1 Year	Key Selling Points:	HIGH PRODUCTTIVITY
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Main Motor Power:	15kw
Material Thickness:	1.5-3mm	Drive Way:	Chain
Control System:	PLC	Product:	C/Z Purlin
Decoiler Type:	Hydraulic	Raw Material:	CR.HR.GI
Name:	Light Machine	Keywords:	Light Steel Framing Machine

Type:	Steel Frame & Purlin Machine
Applicable Industries:	Building Material Shops, Manufacturing Plant, Construction Works
Showroom Location:	Turkey, Italy, South Korea, South Africa
Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:	New
Production Capacity:	15m/s
Voltage:	380V
Power:	50KW
Dimension(LWH):	9X3X2m
Weight:	8 Kg
Warranty:	1 Year
Key Selling Points:	HIGH PRODUCTTIVITY
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Main Motor Power:	15kw
Material Thickness:	1.5-3mm
Drive Way:	Chain
Control System:	PLC
Product:	C/Z Purlin
Decoiler Type:	Hydraulic
Raw Material:	CR.HR.GI
Name:	Light Machine
Keywords:	Light Steel Framing Machine

Automatic Sheet Metal Roofing Machine For Steel Frame Purlin Production

NO.	Name	Quant.	Remark
1	5T hydraulic Motoized decoiler	1 set	1)Max 5T 2)Max coil:500mm 3)Motor:5.5kw made in China
2	Leveling machine	1 set	1) 7 rolls leveling( top 3 rolls and bottom 4 rolls) 2)Rolls material:40Cr 3)Leveling speed:max 20m/min 4)5.5kwdriving-motor,speed adjustable
3	Speed control sensor	1 set	It can make the punching and forming speed simutaneous
4	SRF300B servo motor Feeder	1 set	1)Feeding speed:max 20m/min 2)Mitsubishi servo-feeder system and PLC,made in Japan 3) 70 mm feeder rolls
5	Punching press	1 set	1)Model:JF21-80 2)Motor:11KW 3)Slide stroke:max 45 times /min
6	Punching mould	1 set	1)Mould material Cr12Mov
7	Main forming Machine unit	1 set	1)20 forming stands 2) Cast iron stands 3)Gearbox drive 4) power:45kw
8	Turkish head	1 set	It can make the product straight
8	Flying shear	1 set	1)Yaskawa servo-motor control with ball screw 2)Servo-motor power 3 kw
9	Cutting blade	10 sets	Cr12
10	motorized table	1 set	1) Length :6m 2) Pneumatic control
11	Electric panel	1 set	1)PLC control system,Panasonic/Siemens 2)Yaskawa inverter 3)Omron encoder
12	Cooling&lubrication system	--	---

Get the latest offer now!

FAQ

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
