Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Glazed Steel Shelf Panel Rolling Forming Machine, Q235 Steel Shelf Panel Rolling Forming Machine, Q235 Steel truss forming machine


Applicable Industries:	Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works	Showroom Location:	Turkey, Italy
Condition:	New	Type:	Beam Forming Machine
Tile Type:	Glazed Steel	Use:	Cable Tray
Production Capacity:	10-15m/min	Voltage:	380V
Dimension(LWH):	8mx1.5mx1.6m	Weight:	20 Kg
Warranty:	1 Year	Key Selling Points:	High Productivity
Rolling Thinckness:	0.2-1.0mm	Feeding Width:	Other
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Control System:	PLC(imported Brand)	Roller Material:	Q235 And Q345 Hot Rolled Steel Coils
Roller Diameter:	75mm	Material Thickness:	1.5mm-2.0mm
Whole Line Working Speed:	15m/min	Motor Power:	22kw
Main Forming Stands:	26 Stations	Way Of Drive:	1.2inch Chain Drive
Name:	Beam Forming Machine Storage Rack Roll Forming Machine

Applicable Industries:	Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works
Showroom Location:	Turkey, Italy
Condition:	New
Type:	Beam Forming Machine
Tile Type:	Glazed Steel
Use:	Cable Tray
Production Capacity:	10-15m/min
Voltage:	380V
Dimension(LWH):	8mx1.5mx1.6m
Weight:	20 Kg
Warranty:	1 Year
Key Selling Points:	High Productivity
Rolling Thinckness:	0.2-1.0mm
Feeding Width:	Other
Machinery Test Report:	Not Available
Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Control System:	PLC(imported Brand)
Roller Material:	Q235 And Q345 Hot Rolled Steel Coils
Roller Diameter:	75mm
Material Thickness:	1.5mm-2.0mm
Whole Line Working Speed:	15m/min
Motor Power:	22kw
Main Forming Stands:	26 Stations
Way Of Drive:	1.2inch Chain Drive
Name:	Beam Forming Machine Storage Rack Roll Forming Machine

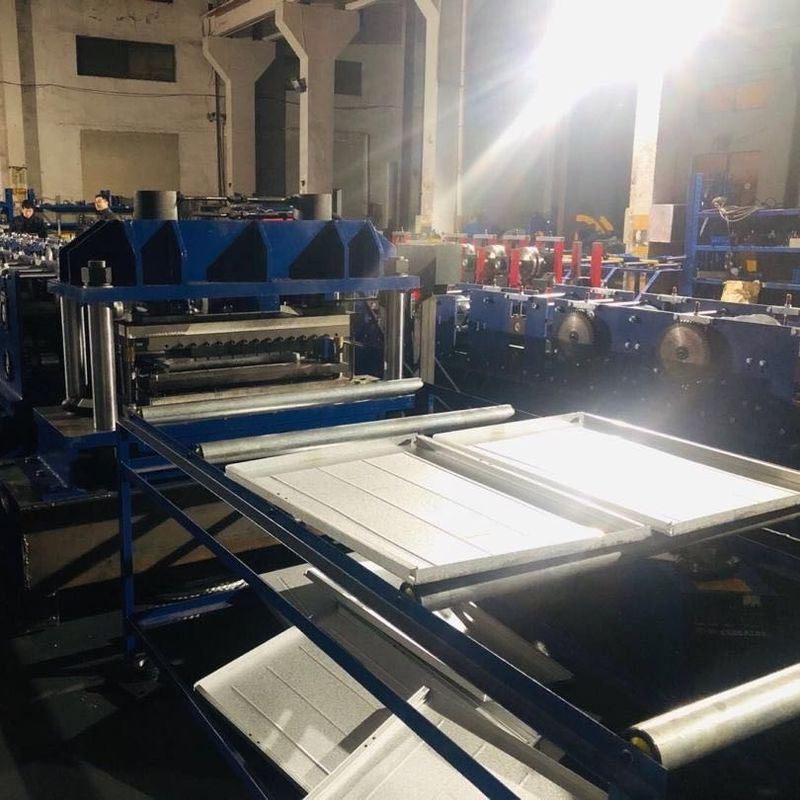

Truss Shelf Panel Rolling Forming Machine Glazed Q235 Steel

Company Profile

Products Description

Profile drawing

Production process

Product Paramenters

NO.	Name	QTY	Remark
1	5T hydraulic decoiler	1 set	Max 5T Max coil:800mm Hydraulic expansion and motorizied decoiling
2	Holes Punching & corner cut	4 sets	We use hydraulic punching machine Corner cut mould:2 sets ( left and right side can be adjustable manually) Lateral holes punching mould: 1 set( position can be adjustable manually)
3	Logo stamping	1 set	Stamping mould:1 set
4	Roll forming Machine	1 set	wall panel catilever structure 24 forming stations 15KW motor made in China
5	Hydraulic Cutting&bending mould combination	1 set	Cutting power:7.5kw Mould material:Cr12.HRC58-62
6	Run-out table	2pcs	Steel frame with Rollers
7	Electric control panel	1 set	PLC control system ,Siemens from German brand Yaskawa inverter from Japan
8	Hydraulic system	1 set	Solenoid is made in China
