Product Details
Place of Origin: Jiangsu, China
Brand Name: HRF
Payment & Shipping Terms
Price: $40,000.00/sets 1-1 sets
Applicable Industries: |
Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works |
Showroom Location: |
Turkey, Italy |
Condition: |
New |
Type: |
Beam Forming Machine |
Tile Type: |
Glazed Steel |
Use: |
Cable Tray |
Production Capacity: |
10-15m/min |
Voltage: |
380V |
Dimension(L*W*H): |
8mx1.5mx1.6m |
Weight: |
5000 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High Productivity |
Rolling Thinckness: |
0.2-1.0mm |
Feeding Width: |
Other |
Machinery Test Report: |
Not Available |
Video Outgoing-inspection: |
Not Available |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Control System: |
PLC(imported Brand) |
Roller Material: |
Q235 And Q345 Hot Rolled Steel Coils |
Roller Diameter: |
75mm |
Material Thickness: |
1.5mm-2.0mm |
Whole Line Working Speed: |
15m/min |
Motor Power: |
22kw |
Main Forming Stands: |
26 Stations |
Way Of Drive: |
1.2inch Chain Drive |
Name: |

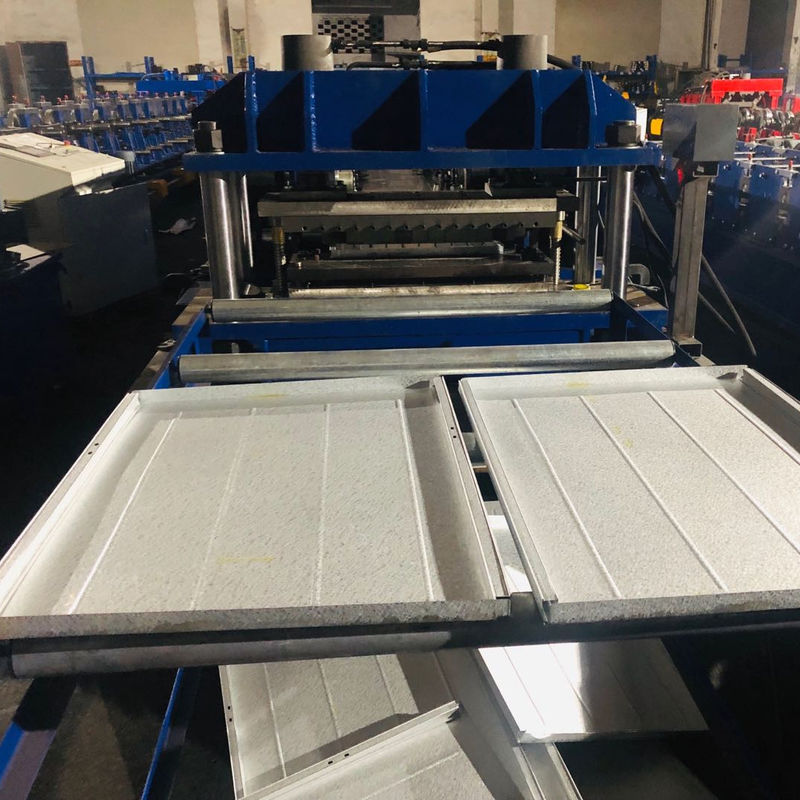

Supermarket Shelf Panel Rolling Forming Machine |
Applicable Industries: |
Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Construction Works |
Showroom Location: |
Turkey, Italy |
Condition: |
New |
Type: |
Beam Forming Machine |
Tile Type: |
Glazed Steel |
Use: |
Cable Tray |
Production Capacity: |
10-15m/min |
Voltage: |
380V |
Dimension(L*W*H): |
8mx1.5mx1.6m |
Weight: |
5000 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High Productivity |
Rolling Thinckness: |
0.2-1.0mm |
Feeding Width: |
Other |
Machinery Test Report: |
Not Available |
Video Outgoing-inspection: |
Not Available |
Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Control System: |
PLC(imported Brand) |
Roller Material: |
Q235 And Q345 Hot Rolled Steel Coils |
Roller Diameter: |
75mm |
Material Thickness: |
1.5mm-2.0mm |
Whole Line Working Speed: |
15m/min |
Motor Power: |
22kw |
Main Forming Stands: |
26 Stations |
Way Of Drive: |
1.2inch Chain Drive |
Name: |
Supermarket Shelf Panel Rolling Forming Machine |
|
NO.
|
Name
|
QTY
|
Remark
|
|
1
|
5T hydraulic decoiler
|
1 set
|
Max 5T
Max coil:800mm Hydraulic expansion and motorizied decoiling |
|
2
|
Holes Punching & corner cut
|
4 sets
|
We use hydraulic punching machine
Corner cut mould:2 sets ( left and right side can be adjustable manually) Lateral holes punching mould: 1 set( position can be adjustable manually) |
|
3
|
Logo stamping
|
1 set
|
Stamping mould:1 set
|
|
4
|
Roll forming Machine
|
1 set
|
wall panel catilever structure
24 forming stations 15KW motor made in China |
|
5
|
Hydraulic Cutting&bending mould combination
|
1 set
|
Cutting power:7.5kw
Mould material:Cr12.HRC58-62 |
|
6
|
Run-out table
|
2pcs
|
Steel frame with Rollers
|
|
7
|
Electric control panel
|
1 set
|
PLC control system ,Siemens from German brand
Yaskawa inverter from Japan |
|
8
|
Hydraulic system
|
1 set
|
Solenoid is made in China
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
