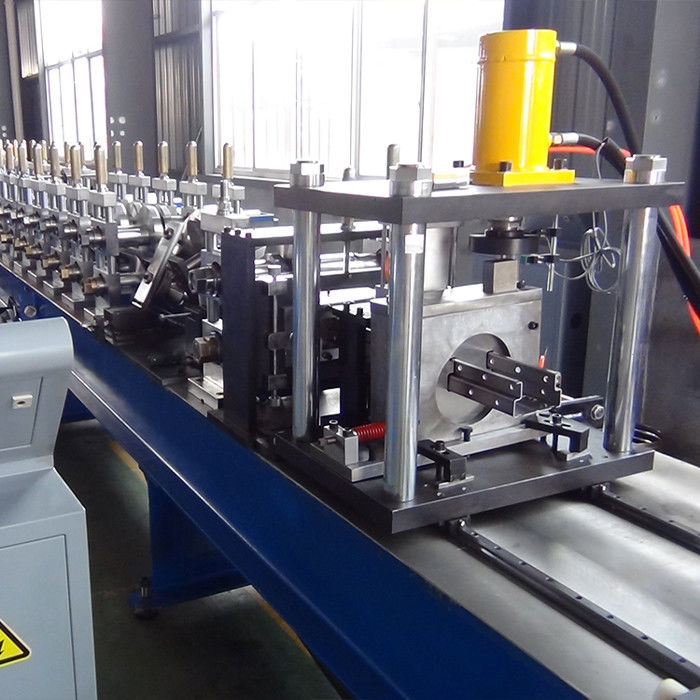

Steel Upright Roll Forming Machine for glazed tile making 3Ph

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $50,000.00/sets 1-1 sets

Packaging Details: Formal packaging used sandwich panel line sandwich panel making machine wall pu roof sandwich panel product line

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Steel upright roll forming machine, 3Ph upright roll forming machine, 3Ph glazed tile making machine


Applicable Industries:	Building Material Shops, Machinery Repair Shops, Printing Shops	Showroom Location:	Egypt, United States
Condition:	New, New	Type:	Tile Forming Machine
Tile Type:	Steel	Use:	ROOF
Production Capacity:	100ft /min	Voltage:	440v 50Hz 3Ph
Dimension(LWH):	8.5m1.6m1.4m	Weight:	3000 Kg
Warranty:	1 Year	Key Selling Points:	Long Service Life
Rolling Thinckness:	0.2-1.0mm	Feeding Width:	1220mm
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Gearbox, Engine, PLC	Keywords:	Engineers Available To Service Machinery Overseas
Product Name:	Custom Made Roll Auction Roll Forming Machine Flow Rack	Line Speed:	100ft/min
Forming Station:	18	Motor:	11kw
Roller Material:	45# Steel Plated	Control System:	PLC(imported Brand)
Way Of Drive:	Chain ,1 Inch	Name:	Storage Rack Roll Forming Machine Pallet Rack Roll Forming Machine

Applicable Industries:	Building Material Shops, Machinery Repair Shops, Printing Shops
Showroom Location:	Egypt, United States
Condition:	New, New
Type:	Tile Forming Machine
Tile Type:	Steel
Use:	ROOF
Production Capacity:	100ft /min
Voltage:	440v 50Hz 3Ph
Dimension(LWH):	8.5m1.6m1.4m
Weight:	3000 Kg
Warranty:	1 Year
Key Selling Points:	Long Service Life
Rolling Thinckness:	0.2-1.0mm
Feeding Width:	1220mm
Machinery Test Report:	Not Available
Video Outgoing-inspection:	Not Available
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	Pressure Vessel, Motor, Gearbox, Engine, PLC
Keywords:	Engineers Available To Service Machinery Overseas
Product Name:	Custom Made Roll Auction Roll Forming Machine Flow Rack
Line Speed:	100ft/min
Forming Station:	18
Motor:	11kw
Roller Material:	45# Steel Plated
Control System:	PLC(imported Brand)
Way Of Drive:	Chain ,1 Inch
Name:	Storage Rack Roll Forming Machine Pallet Rack Roll Forming Machine

Steel Upright Roll Forming Machine for glazed tile making 3Ph

warehouse super market Storage Rack Upright pilliar steel profile roll forming machine is designed to make the rack for bearing
the shelf pannel or other goods.usually used in warehouse and supermarket.

Advantages: ♥ Customized according to customer requirements. ♥ Over 15 years of experience

♥ Favorable price and easy operation ♥ Provide technical guidance, production, installation, commissioning and maintenance services for our customers

Item	Components Name	Quantity
1	3T Hydraulic Decoiler	1set
2	Leveling machine unit	1set
3	Servo feeder and holes punching system	1set
4	Main Forming Machine	1set
5	Hydraulic Cutting system	1set
6	Run-out table	1set
7	Electric control system	1set

Get the latest offer now!

FAQ

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
