Product Details
Place of Origin: Jiangsu, China
Brand Name: HRF
Payment & Shipping Terms
Price: $50,000.00/sets 1-1 sets
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Construction Works |
Showroom Location: |
Egypt, Turkey, Italy, South Korea |
Condition: |
New |
Type: |
Tile Forming Machine |
Tile Type: |
Steel |
Use: |
WALL |
Production Capacity: |
15 M/min |
Voltage: |
380V |
Dimension(L*W*H): |
850X800X140mm |
Weight: |
3000 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High Productivity |
Rolling Thinckness: |
0.4-0.8 Mm |
Feeding Width: |
915mm |
Machinery Test Report: |
Not Available |
Video Outgoing-inspection: |
Not Available |
Marketing Type: |
New Product 2021 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Motor, Bearing, Gear, Engine, PLC, Other |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Material Thickness: |
0.4-0.9mm |
Forming Speed: |
12-15m/min |
Roll Station: |
19stations(depend On The Profile) |
Main Power: |
5.5kw |
Hydraulic Power: |
4kw |
Control System: |
PLC Panasonic/Simens |
Drive: |
By Chain |
MOQ: |
1set |
Product Name: |

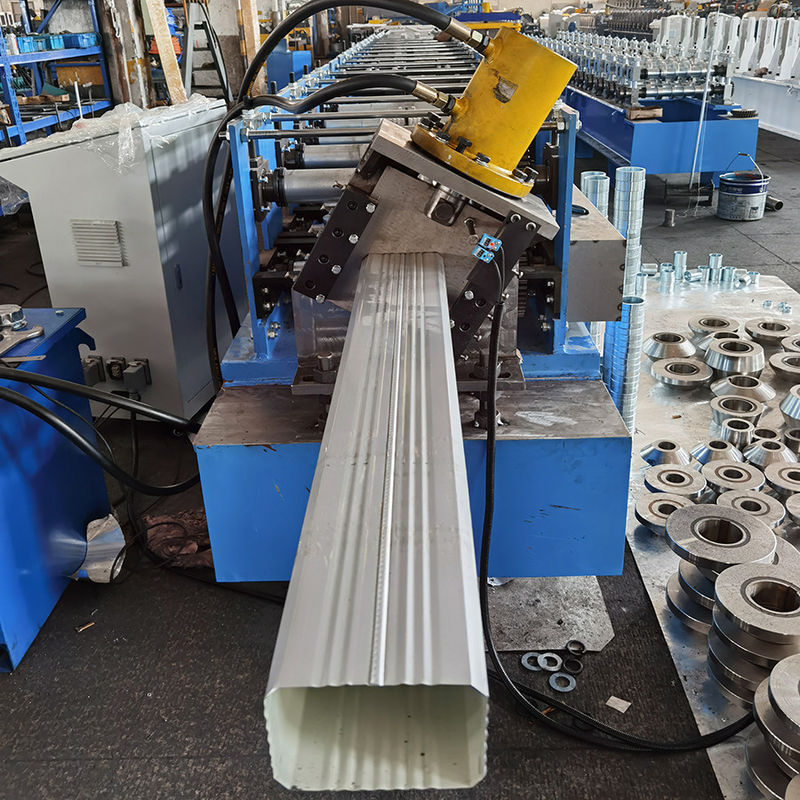

Pipe Roll Forming Machine Square Tube Roll Forming Machine |
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Construction Works |
Showroom Location: |
Egypt, Turkey, Italy, South Korea |
Condition: |
New |
Type: |
Tile Forming Machine |
Tile Type: |
Steel |
Use: |
WALL |
Production Capacity: |
15 M/min |
Voltage: |
380V |
Dimension(L*W*H): |
850X800X140mm |
Weight: |
3000 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High Productivity |
Rolling Thinckness: |
0.4-0.8 Mm |
Feeding Width: |
915mm |
Machinery Test Report: |
Not Available |
Video Outgoing-inspection: |
Not Available |
Marketing Type: |
New Product 2021 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Motor, Bearing, Gear, Engine, PLC, Other |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Material Thickness: |
0.4-0.9mm |
Forming Speed: |
12-15m/min |
Roll Station: |
19stations(depend On The Profile) |
Main Power: |
5.5kw |
Hydraulic Power: |
4kw |
Control System: |
PLC Panasonic/Simens |
Drive: |
By Chain |
MOQ: |
1set |
Product Name: |
Pipe Roll Forming Machine Square Tube Roll Forming Machine |
|
Item
|
Parameter
|
|
Material
|
Yield strength≤550Mpa
|
|
Width
|
100 x 125mm
|
|
Speed
|
10-15m/min
|
|
Forming station
|
24 stations
|
|
Main motor power
|
7.5 kw servo motor, Tailong reducer
|
|
Voltage
|
380V, 50Hz, 3ph
|
|
Hydraulic station motor power
|
11 kw
|
|
Hydraulic station pressure
|
10-12MPa
|
|
Shaft material
|
45# steel, quenching and tempering
|
|
Roller material
|
40Cr, Hard chrome plating on quenched surface
|
|
Shaft diameter
|
76mm
|
|
Cutting way
|
Hydraulic die cutting(after forming)
|
|
Cutting blade material
|
Cr12Mov(quenching HRC58~62)
|
|
Tollerance
|
Width ±0.5mm,Height±0.5mm, Length±1.5mm
|
|
Driven way |
Chain
|
|
Bearing
|
Herbin brand
|
