Product Details
Place of Origin: China
Brand Name: HRF
Payment & Shipping Terms
Price: $50,000.00/sets 1-1 sets
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Construction Works |
Showroom Location: |
Egypt, Turkey, Italy, South Korea |
Condition: |
New |
Type: |
Tile Forming Machine |
Tile Type: |
Steel |
Use: |
WALL |
Production Capacity: |
15 M/min |
Voltage: |
380V |
Dimension(L*W*H): |
850X800X140mm |
Weight: |
15 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High Productivity |
Rolling Thinckness: |
0.4-0.8 Mm |
Feeding Width: |
915mm |
Machinery Test Report: |
Not Available |
Video Outgoing-inspection: |
Not Available |
Marketing Type: |
New Product 2021 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Motor, Other, Bearing, Gear, Engine, PLC |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Product Name: |

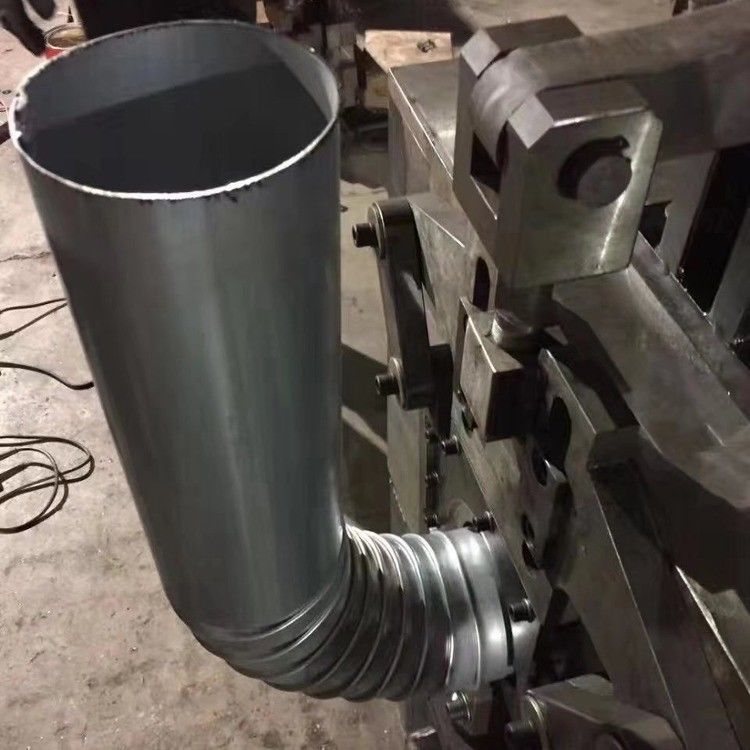

Standard Corrugated Roll Pipe End Forming Machine |
Material Thickness: |
0.4-0.9mm |
Forming Speed: |
12-15m/min |
Roll Station: |
19stations(depend On The Profile) |
Main Power: |
5.5kw |
Hydraulic Power: |
4kw |
Control System: |
PLC Panasonic/Simens |
Drive: |
By Chain |
MOQ: |
1set |
Applicable Industries: |
Building Material Shops, Manufacturing Plant, Construction Works |
Showroom Location: |
Egypt, Turkey, Italy, South Korea |
Condition: |
New |
Type: |
Tile Forming Machine |
Tile Type: |
Steel |
Use: |
WALL |
Production Capacity: |
15 M/min |
Voltage: |
380V |
Dimension(L*W*H): |
850X800X140mm |
Weight: |
15 Kg |
Warranty: |
1 Year |
Key Selling Points: |
High Productivity |
Rolling Thinckness: |
0.4-0.8 Mm |
Feeding Width: |
915mm |
Machinery Test Report: |
Not Available |
Video Outgoing-inspection: |
Not Available |
Marketing Type: |
New Product 2021 |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Motor, Other, Bearing, Gear, Engine, PLC |
After-sales Service Provided: |
Engineers Available To Service Machinery Overseas |
Product Name: |
Standard Corrugated Roll Pipe End Forming Machine |
Material Thickness: |
0.4-0.9mm |
Forming Speed: |
12-15m/min |
Roll Station: |
19stations(depend On The Profile) |
Main Power: |
5.5kw |
Hydraulic Power: |
4kw |
Control System: |
PLC Panasonic/Simens |
Drive: |
By Chain |
MOQ: |
1set |
|
Item
|
Parameter
|
|
Material
|
Yield strength≤550Mpa
|
|
Thickness
|
0.4mm-1.0mm
|
|
Width
|
408mm
|
|
Speed
|
10-15m/min
|
|
Forming station
|
24 stations
|
|
Main motor power
|
7.5 kw servo motor, Tailong reducer
|
|
Voltage
|
380V, 50Hz, 3ph
|
|
Hydraulic station motor power
|
11 kw
|
|
Hydraulic station pressure
|
10-12MPa
|
|
Shaft material
|
45# steel, quenching and tempering
|
|
Roller material
|
40Cr, Hard chrome plating on quenched surface
|
|
Shaft diameter
|
76mm
|
|
Cutting way
|
Hydraulic die cutting(after forming)
|
|
Cutting blade material
|
Cr12Mov(quenching HRC58~62)
|
|
Tollerance
|
Width ±0.5mm,Height±0.5mm, Length±1.5mm
|
|
Driven way |
Chain
|
|
Bearing
|
Herbin brand
|
Wuxi HRF Science & Technolog Co.,Ltd located in Wuxi city,Jiangsu province which is close to Shanghai international airport ,we enojoy convenient transportation and advantageous location with which supply good business opportunities for the investors home and abroad.And our company was established in 2009, has the specialized technical team, provides the high quality product and the high quality service for you.
Our company are specialized in designing,manufacturing,sales and services in the field of cold roll forming machines, we can supply the stud-track forming machines,c/z purlin forming machines,roof &wall forming machines,expressway guardrail forming machines, metal deck forming machines ,steel tile forming machines ,PU sandwich panel production line as well as slitting lines and cut-to-length machines lines and so on.
"Copra" software made in Germany is a kind of professional software for designing the cold roll forming machines.In the past years,we devoted ourselves to studying,training and putting into production.Through continous efforts made by our staffs,we already improved a lot on the machines quality and won good repution in the worldwide.
We are ready to establish the business relations with the overseas customers and we also believe" the oppotunity here,here you are"
Our commitment is quality and service , our goal is customer satisfaction . We will, as always, be pragmatic and promote mutually beneficial cooperation and common development of you.
