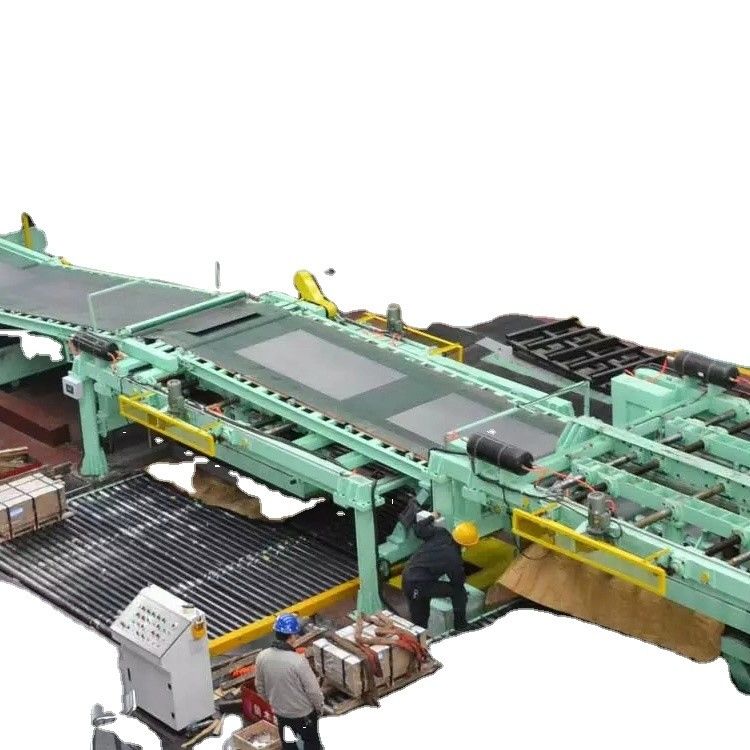

Slitting And Cut To Length Lines Precise Metal HR Coil Cutting Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $45,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Slitting cut to length lines, HR Coil cut to length lines, Slitting hr coil cutting machine


Cutting Width (mm):	6000 - 12000 Mm	Material Thickness(mm):	3 - 12 Mm
Cutting Speed(m/min):	1 - 26 M/min	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Coil Weight (T):	35T	Leveling Precision(±mm/m):	1 ±mm/m
Condition:	New	Voltage:	450V
Rated Power:	245KW	Dimension(LWH):	30m8m2m
Weight:	50000	Key Selling Points:	High Productivity
Warranty:	1 Year	Applicable Industries:	Printing Shops, Building Material Shops, Manufacturing Plant
Showroom Location:	Turkey, France	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	Cut To Length Line	Coil Thickness:	3-12mm
Control System:	Automatic	Material Of Coils:	Hot Rolled ,cold Rolled Steel,black Steel
Motor Power:	450Kw	Decoiler Type:	Hydraulic
Color:	Requirement	Name:	Slitting And Cut To Length Line Taiwan Slit And Cut To Length Line

Cutting Width (mm):	6000 - 12000 Mm
Material Thickness(mm):	3 - 12 Mm
Cutting Speed(m/min):	1 - 26 M/min
Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Coil Weight (T):	35T
Leveling Precision(±mm/m):	1 ±mm/m
Condition:	New
Voltage:	450V
Rated Power:	245KW
Dimension(LWH):	30m8m2m
Weight:	50000
Key Selling Points:	High Productivity
Warranty:	1 Year
Applicable Industries:	Printing Shops, Building Material Shops, Manufacturing Plant
Showroom Location:	Turkey, France
After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	Cut To Length Line
Coil Thickness:	3-12mm
Control System:	Automatic
Material Of Coils:	Hot Rolled ,cold Rolled Steel,black Steel
Motor Power:	450Kw
Decoiler Type:	Hydraulic
Color:	Requirement
Name:	Slitting And Cut To Length Line Taiwan Slit And Cut To Length Line

Slitting And Cut To Length Lines Precise Metal HR Coil Cutting Machine

Description &Function

a.What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for
uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for
processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils
etc into different width according to the user’s production demands and cut as well

b.Function This equipment through the
procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly
composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device,
transition, and conveyor, etc.

c.Category According to the metal materials there are stainless steel cut to length
machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic
control mode there are pneumatic cut to length line,NC cut to length line and etc.

Product Name	0.23~0.3)*1000mm Slitting machine
Condition	new
Size	25m6m2m
Color	customized
Purpose	Slitting coils
Package	Standard packing
MQQ	1 set
Delivery	80-100 days
Shipment	Shanghai port
Payment Mode	T/T, L/C
Payment Condition	30% deposit in advance. Balance paid by TT before shipping.
Supply Capacity	3 sets per year
