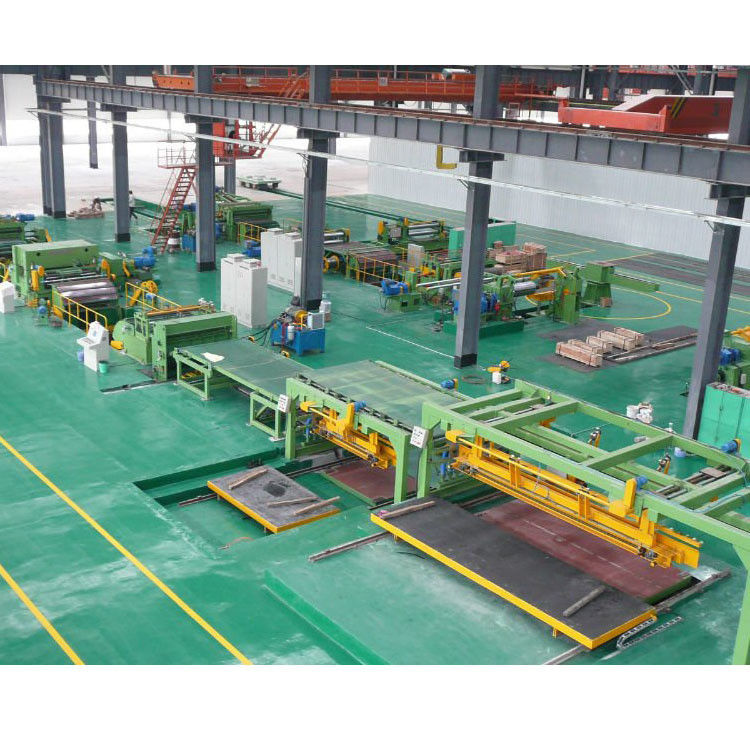

450v Automatic Cut To Length Machine Tinplate Line

Product Details

Place of Origin: Jiangsu, China

Brand Name: HRF

Payment & Shipping Terms

Price: $50,000.00/sets 1-1 sets

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Tinplate automatic cut to length machine, 450v automatic cut to length machine, Tinplate cut to length line machine


Cutting Width (mm):	500 - 1300	Material Thickness(mm):	0.4 - 3
Cutting Speed(m/min):	1 - 110	Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available	Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump	Coil Weight (T):	25
Leveling Precision(±mm/m):	0.5 ±mm/m	Condition:	New
Voltage:	450v	Rated Power:	300kw
Dimension(LWH):	28mx8mx2m	Weight:	50000
Year:	2021	Key Selling Points:	Low Noise Level
Warranty:	1 Year	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location:	Egypt, Turkey, Italy, Germany, Saudi Arabia, India, Spain, Kenya, South Korea, Bangladesh, South Africa, Kazakhstan, Japan	Keywords:	Cut To Length Line Machine
Product Name:	Used Cut To Length Line For Sale	Coil Thickness:	0.4-3mm
Control System:	Automatic	Material Of Coils:	Galvanized Steel,hot Rolled ,cold Rolled Steel
Motor Power:	400Kw	Decoiler Type:	Hydraulic
Color:	Requirement	Name:	Used Cut To Length Line For Sale
After-sales Service Provided:	Field Installation, Commissioning And Training

Cutting Width (mm):	500 - 1300
Material Thickness(mm):	0.4 - 3
Cutting Speed(m/min):	1 - 110
Video Outgoing-inspection:	Not Available
Machinery Test Report:	Not Available
Warranty Of Core Components:	1 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Coil Weight (T):	25
Leveling Precision(±mm/m):	0.5 ±mm/m
Condition:	New
Voltage:	450v
Rated Power:	300kw
Dimension(LWH):	28mx8mx2m
Weight:	50000
Year:	2021
Key Selling Points:	Low Noise Level
Warranty:	1 Year
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location:	Egypt, Turkey, Italy, Germany, Saudi Arabia, India, Spain, Kenya, South Korea, Bangladesh, South Africa, Kazakhstan, Japan
Keywords:	Cut To Length Line Machine
Product Name:	Used Cut To Length Line For Sale
Coil Thickness:	0.4-3mm
Control System:	Automatic
Material Of Coils:	Galvanized Steel,hot Rolled ,cold Rolled Steel
Motor Power:	400Kw
Decoiler Type:	Hydraulic
Color:	Requirement
Name:	Used Cut To Length Line For Sale
After-sales Service Provided:	Field Installation, Commissioning And Training

450v Automatic Cut To Length Machine Tinplate Line

Company Profile

Products Description

1,What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well 2,Function This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc. 3,Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc..

Product Paramenters

item			specifications
Raw materials	Materials feature	Stainless steel
		thickness	0.5mm—4.0mm
		Aluminum feature	Tensile grade σb≤450MP Yield grade σs≤260MP
		width	300mm—1600mm
		O.D	Φ800mm—φ2000mm
		I.D	φ508mm—φ610mm
		Coil weight	Max 25T
Finished product	Flatness without any increased processment faults
		Cutting length	300mm—4000mm
		Leveling precision	less than 25% raw materials non-flatness(1.5-2mm/㎡)
		Cutting tolerance:	±0.5mm/1000mm( length tolerance) ±0.60mm/1000mm( diagonal tolerance) Match the standard GB/T709-88
Strip threading speed			10m/min
Line speed			10-80m/min
Cutting speed			0-25 pcs/ according to the length 2000mm
Total line power consumption			About 125kw
Center line of the line ( to the ground)			+1000mm
Space of the whole line			28mx9m
Line direction			Left input to right output
